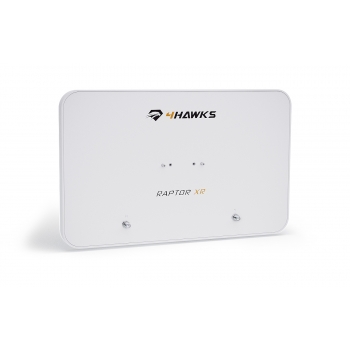

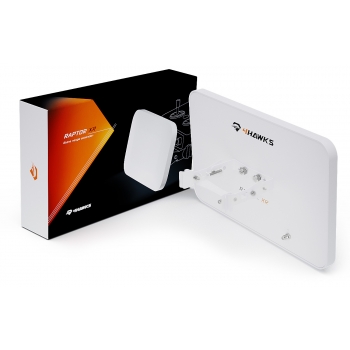

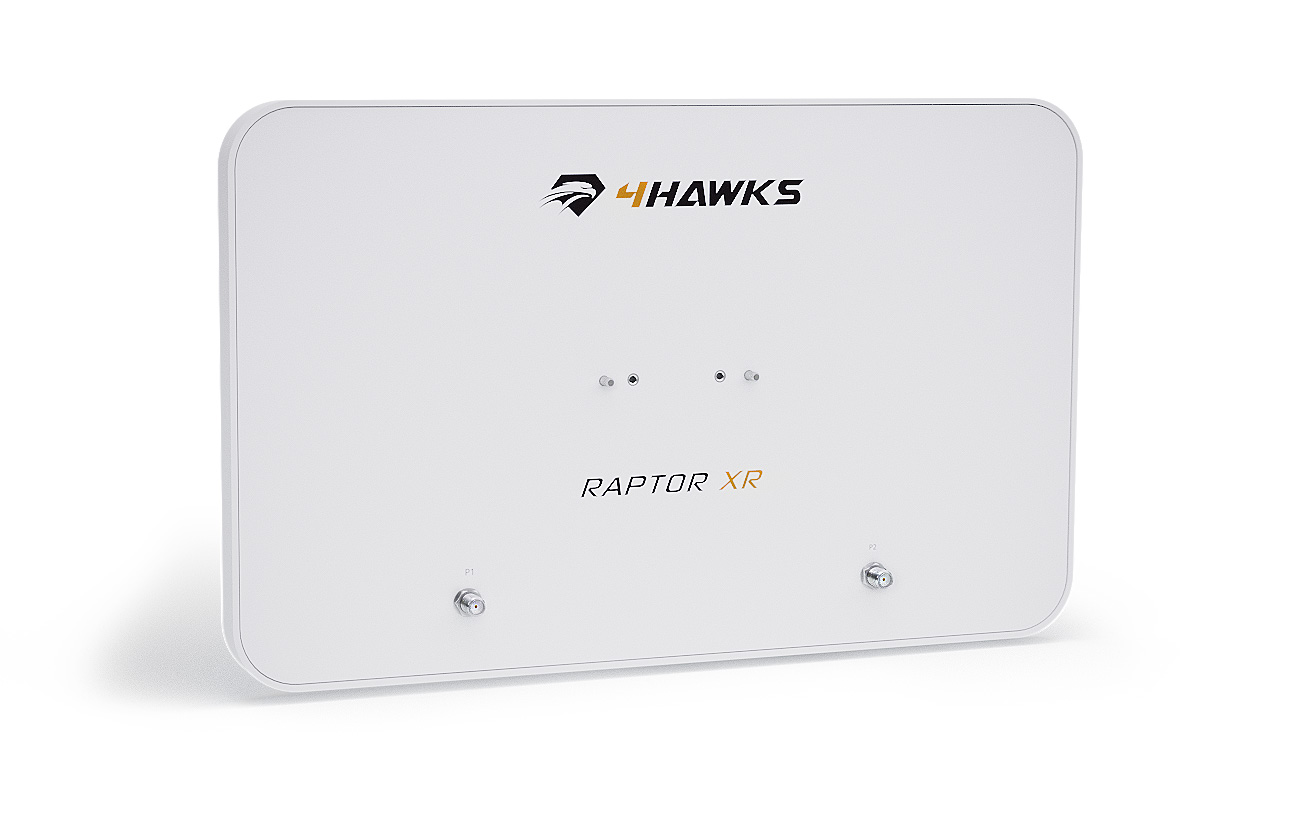

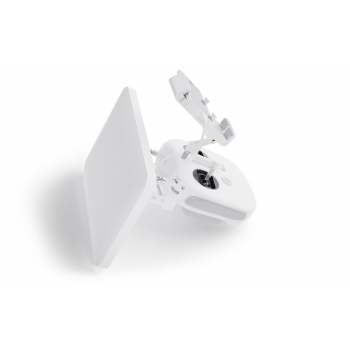

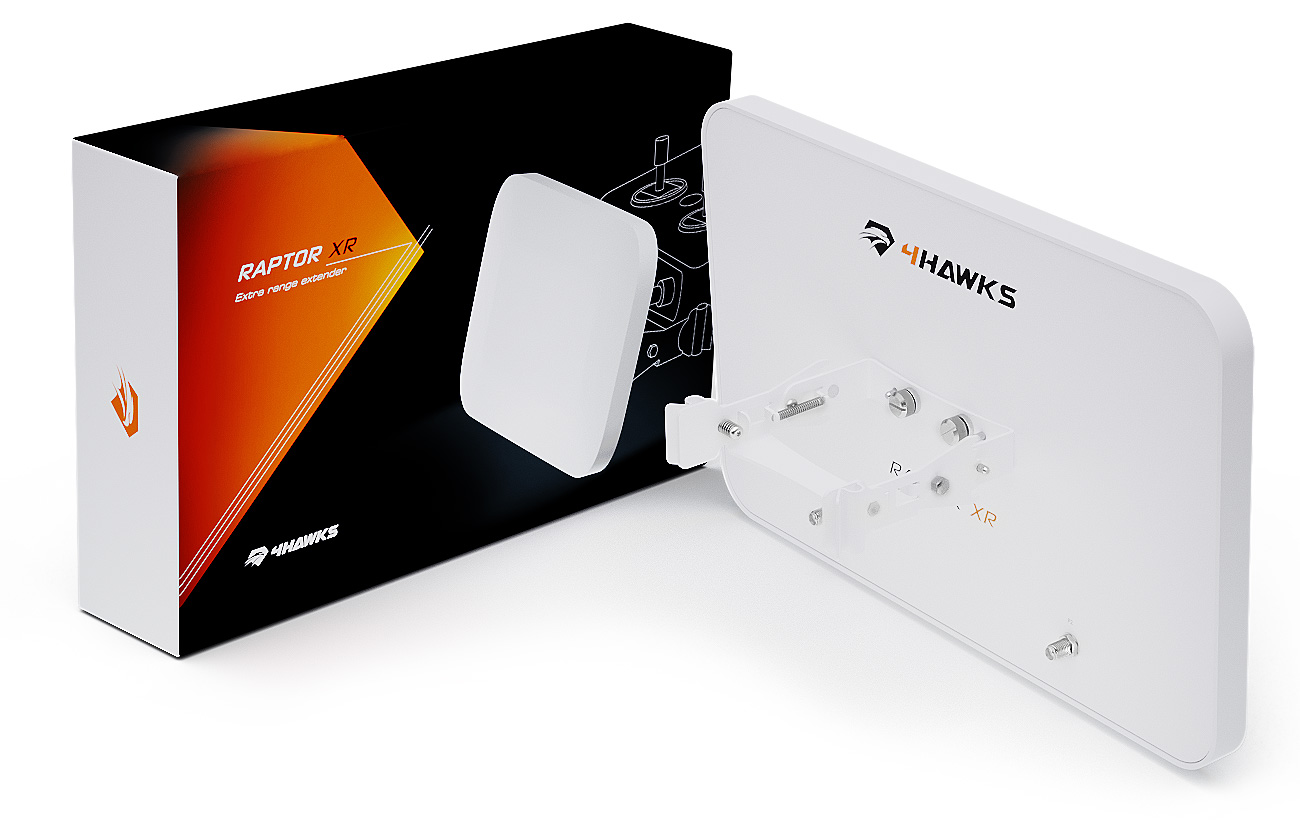

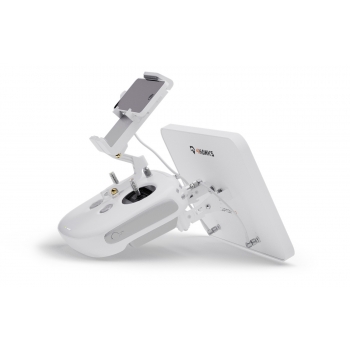

Raptor XR for DJI Phantom 4 Pro v2.0 [A115X]

Raptor XR for DJI Phantom 4 Pro v2.0 [A115X]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A115X

EAN: 853854008261

Condition: New

Weight: 0,70 KG

nett price: 179.00 $

Before purchasing the product, select the required options.

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Maximize performance
Concurrent dual band 2.4 & 5GHz

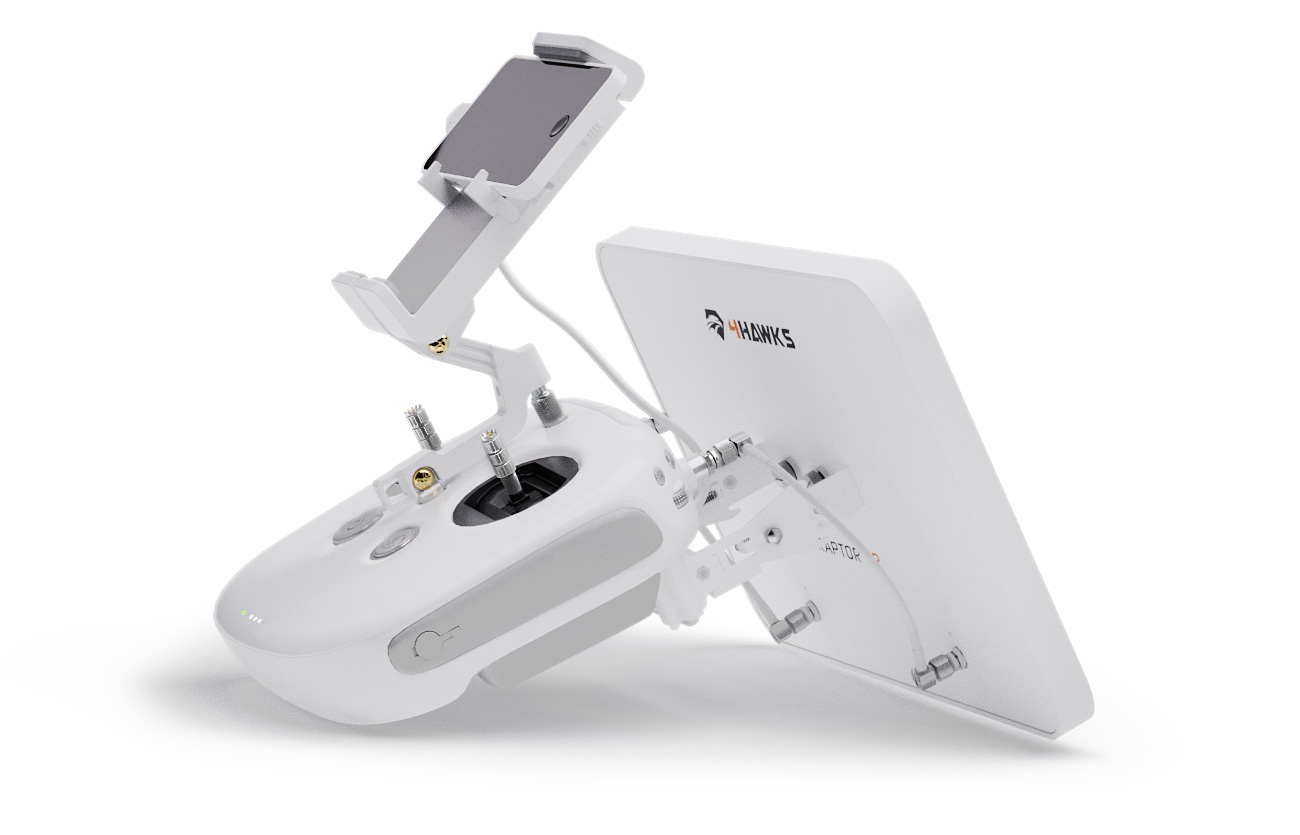

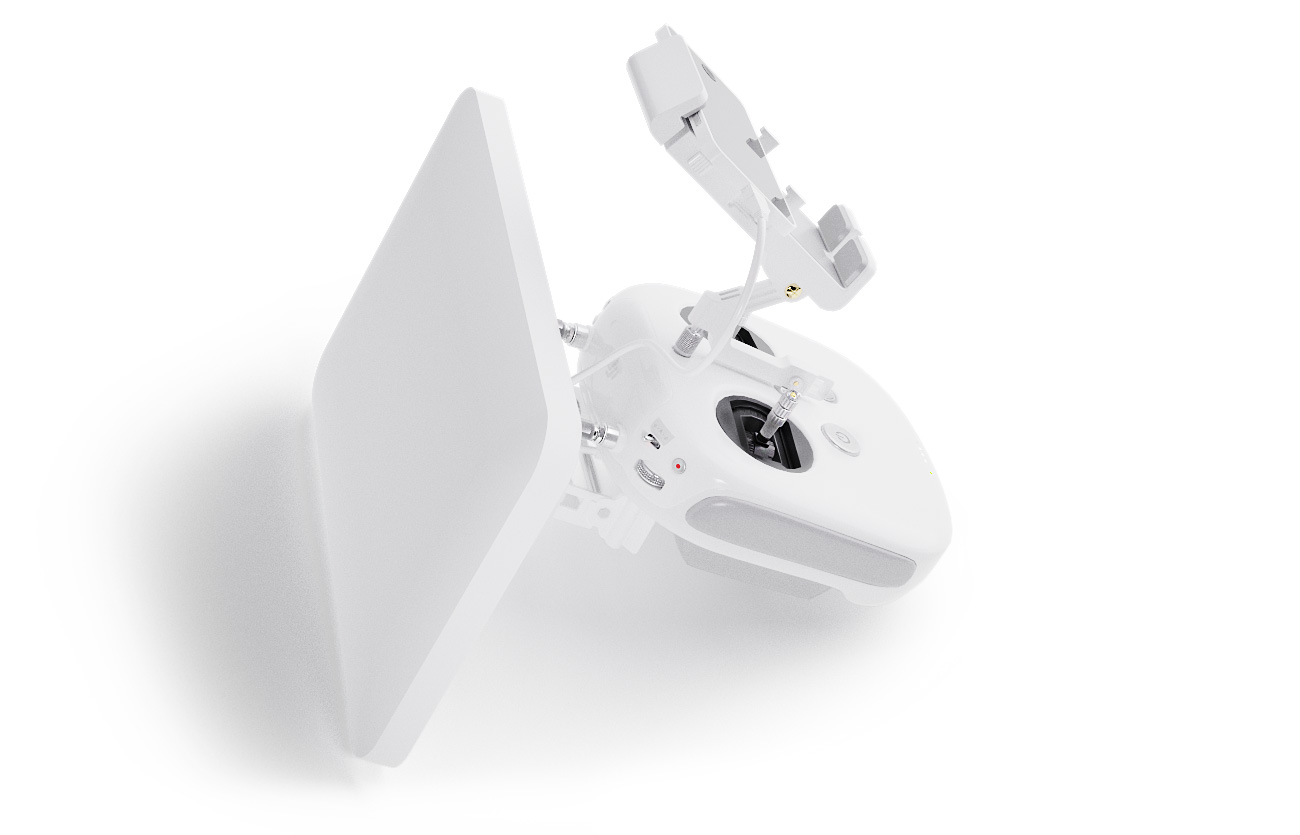

QuickAttach mounting system
Adjustable tilt of the range extender
Dedicated pigtails
No drilling required
No modification to the drone itself
Long range extension without external boosters
Design does not contain any removable parts
Complete solution
Controller NOT included

Designed for DJI Phantom 4 Pro v2.0

Dji Phantom 4 Pro V.20 is a model designed for professionals. The basic kit allows for 30 minutes of uninterrupted flight, maximum speed of 72km/h.
With 4Hawks range extender antenna ability to work at 2 frequencies at the same time, Dji Phantom 4 Pro V2.0 receives a great boost to its overall performance, by enhancing signal from oblique antenna signals that ignore noise exceptionally well - this in return allows Phantom 4 Pro V2.0 to maximize its range in noisy areas. What’s more 4Hawks antenna also increases the range of Dji Phantom 4 Pro V2.0 significantly, so the drone can reach even further than ever before.
Last but not least, with 4Hawks range extender, the video quality is always glitch free, thanks to a strong, uninterrupted signal.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.00)
Port 2: < 1.50 (max. < 2.00)

Beamwidth

Port 1: 70°/40° & 40°/25°
Port 1: 70°/40° & 40°/25°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 540g (450g Antenna + 90g Mounting)

Dimensions

29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Tilt adjustment

5 tilt positions, OnClick syste

Mounting type

On SMA connectors (Permanent)

alt

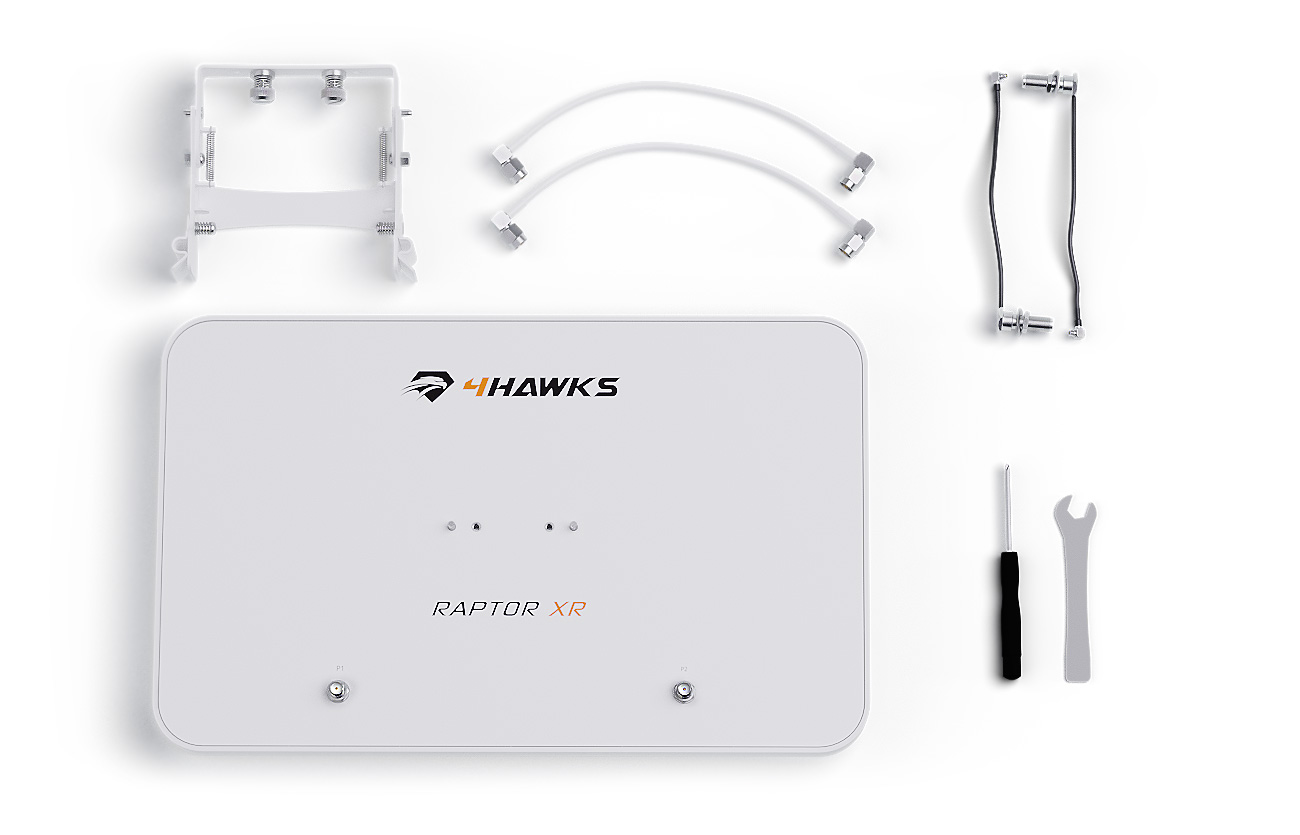

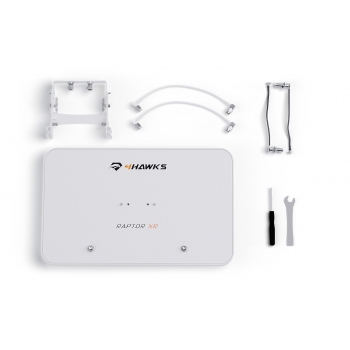

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 white pigtails


2x Dedicated for Phantom 4 Pro V2.0 UFL pigtails	Screwdriver (Philips) + 8mm wrench + hex 1.5mm

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt

Tutorials

Video tutorial with modification of the controller.
