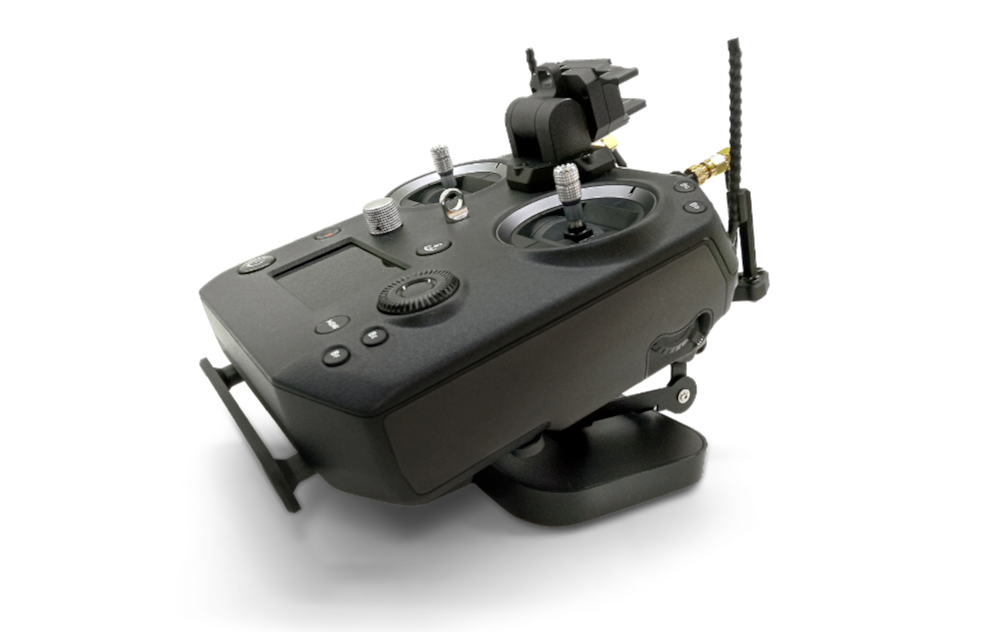

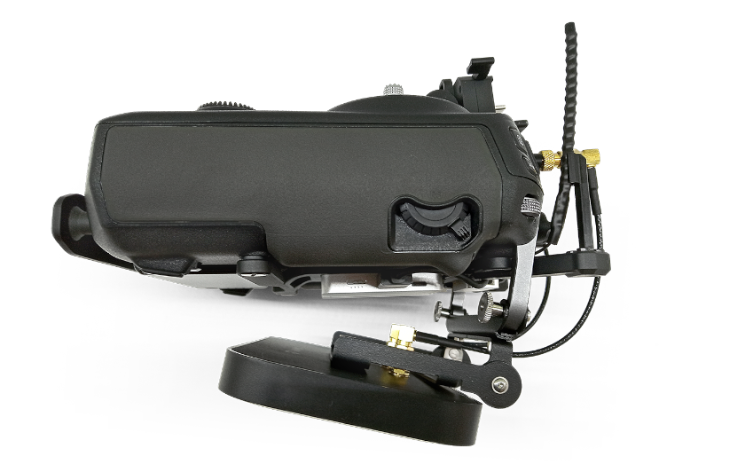

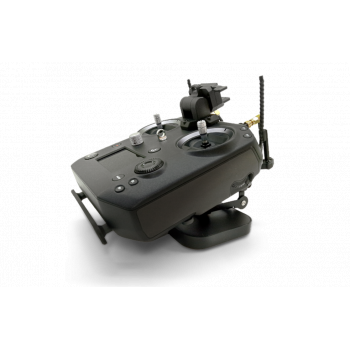

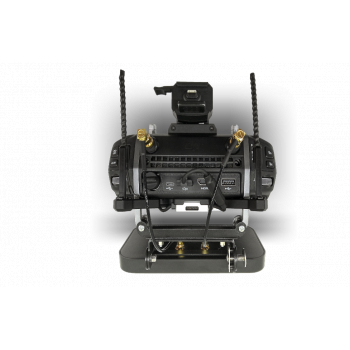

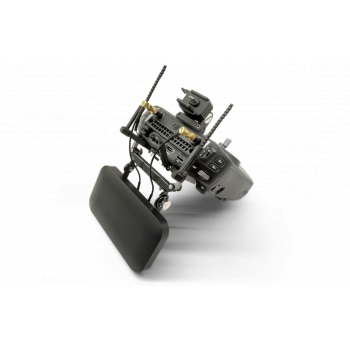

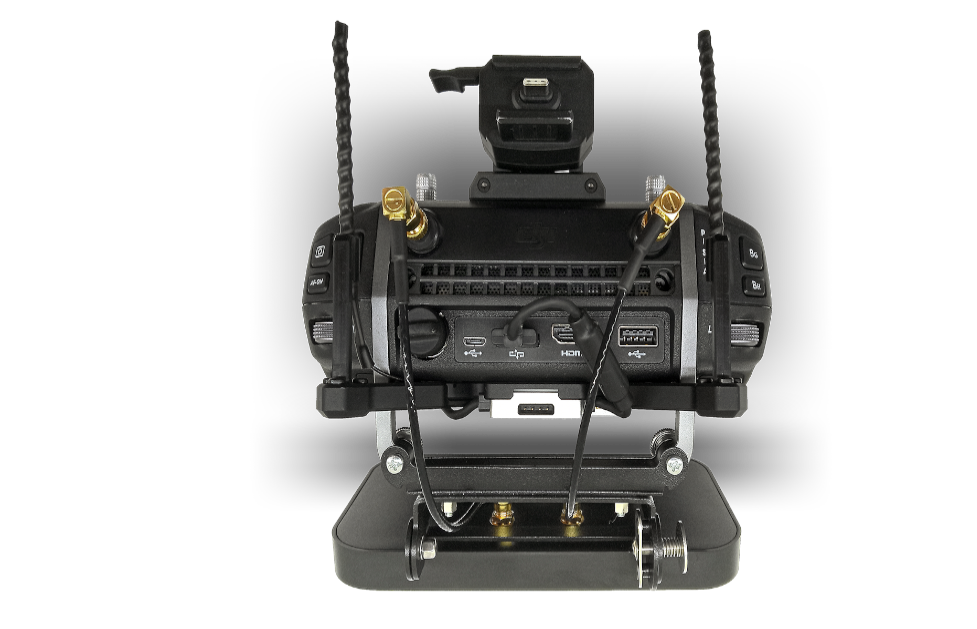

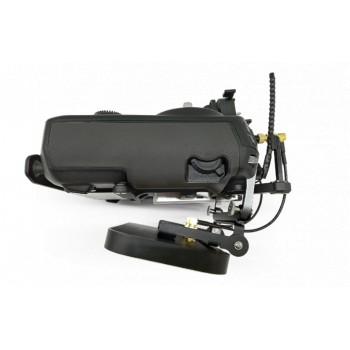

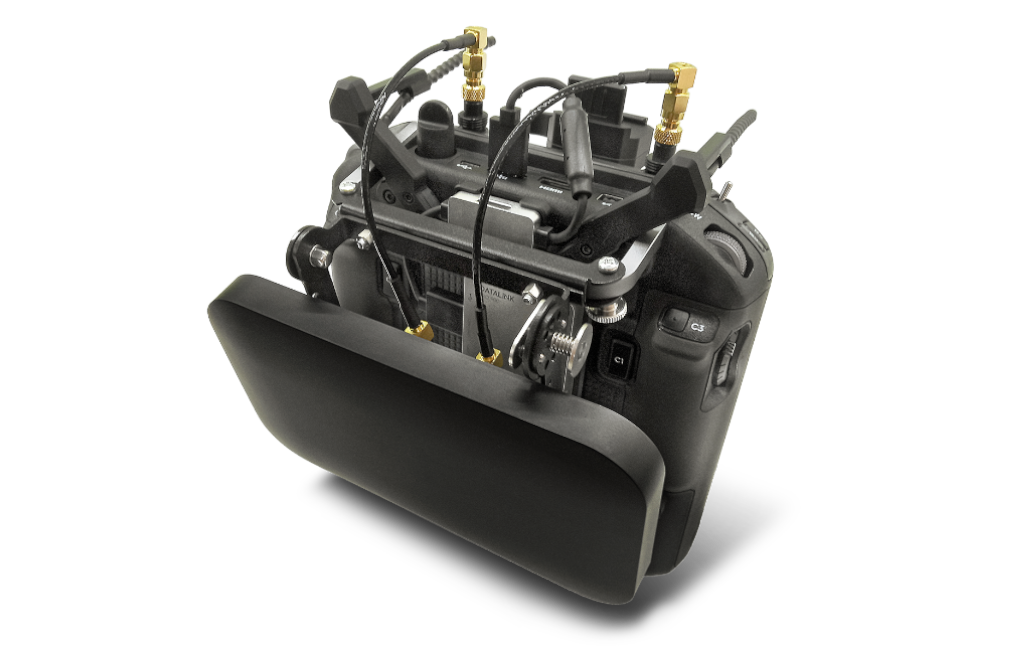

Raptor SR for DJI Cendence [A117S]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A117S

EAN: 853854008445

Condition: New

nett price: 159.00 $

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Concurrent dual band 2.4 & 5GHz
Long range extension without external boosters
Design does not contain any removable parts
Complete solution
Controller NOT included
2 omni stick antennas are not included

Designed for DJI Cendence

The Cendence remote controller is a professional-grade, customizable remote controller designed for full integration with other advanced DJI products like the Inspire 2 and CrystalSky monitor.
4Hawks antenna for DJI Cendence model is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies The concept behind the look of the antenna was to make it look like it was a part of the drone by default. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna doesn't cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.

DJI Cendence is compatible with DJI Inspire 2 and Matrice 200 series.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)

Beamwidth

Port 1: 90°/65° & 55°/55°
Port 2: 90°/65° & 55°/55°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 180g (110g Antenna + 70g Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Tilt adjustment

6 tilt positions

alt

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 black pigtails


SMA–MCX adapter	8mm wrench

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.
