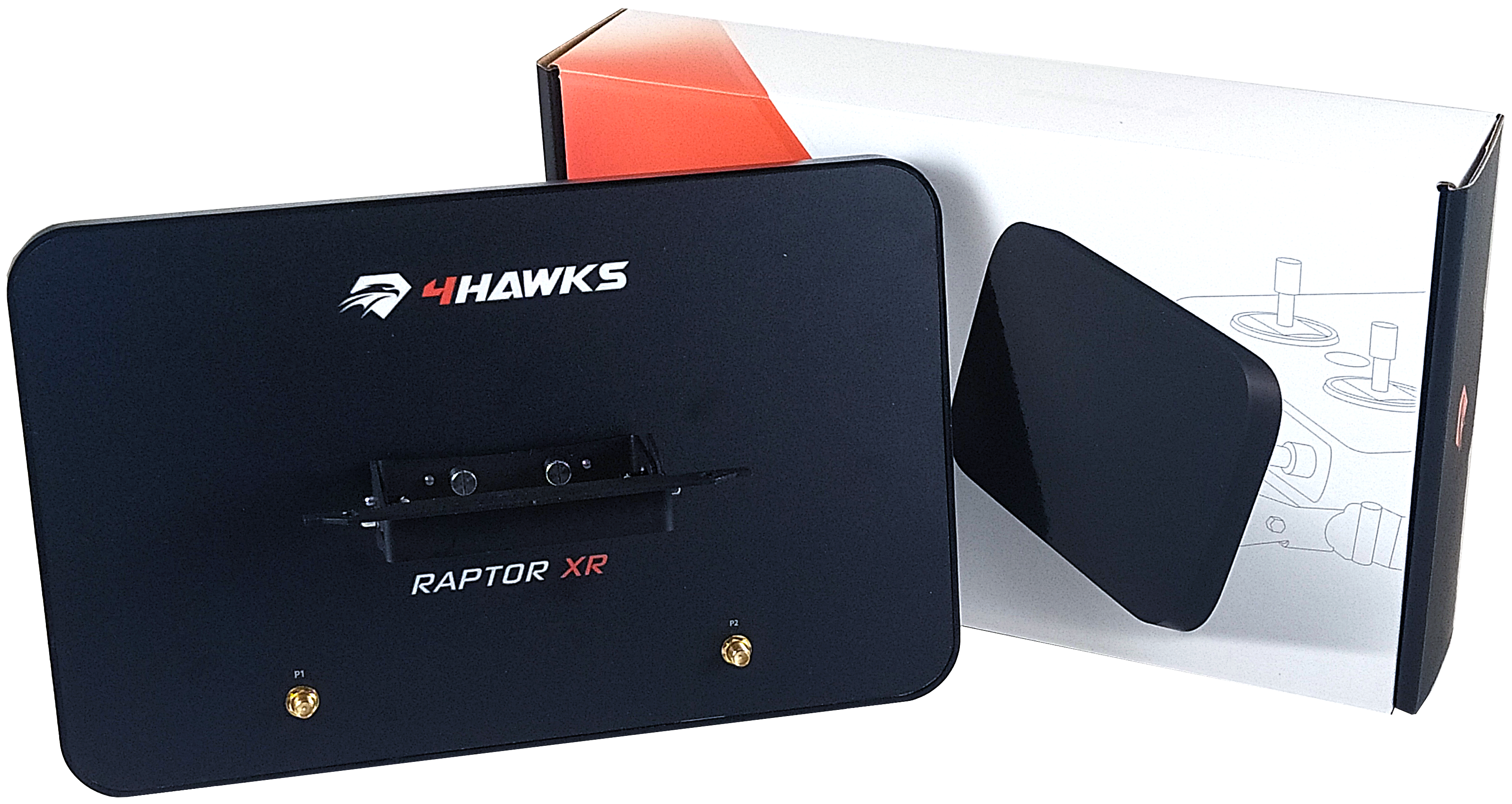

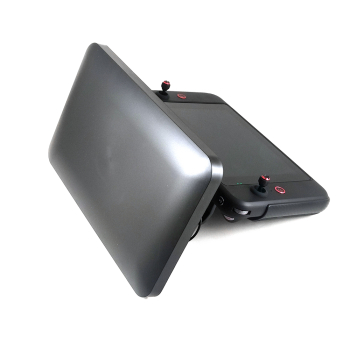

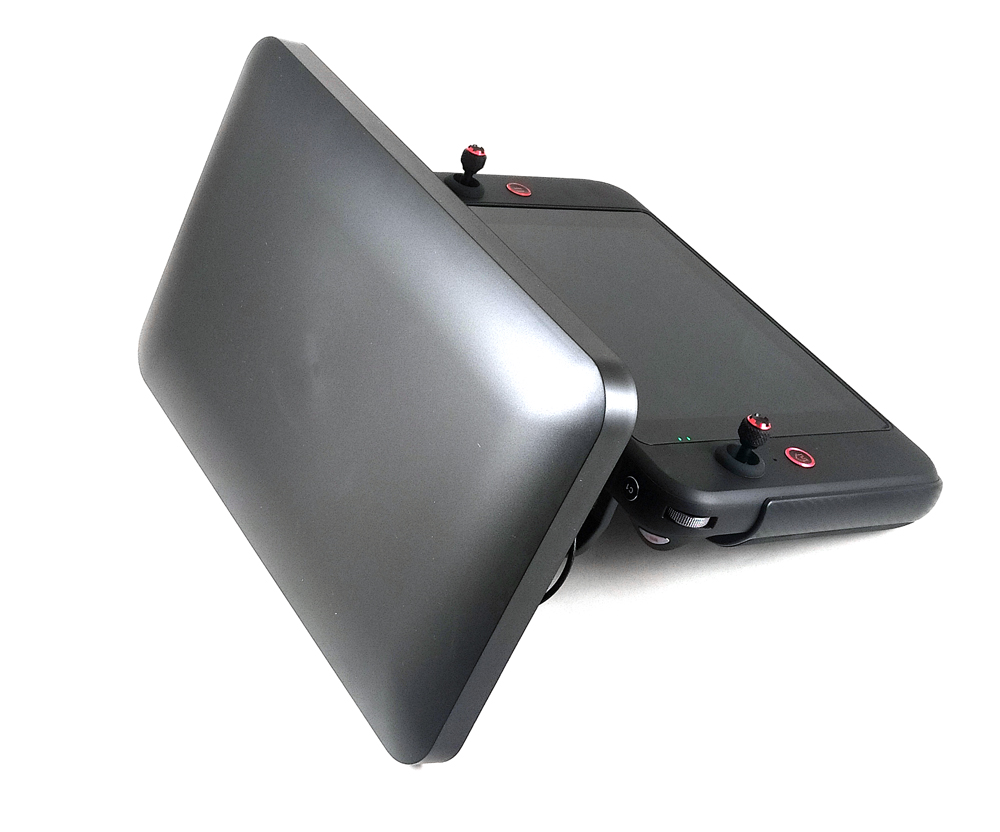

Raptor XR for Autel Smart Controller v2 [A137X]

Raptor XR for Autel Smart Controller v2 [A137X]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A137X

EAN: 853854008711

Condition: New

Weight: 0,70 KG

nett price: 189.00 $

Before purchasing the product, select the required options.

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Concurrent dual band 2.4 & 5GHz
Long range extension without external boosters
Complete solution
Controller NOT included

Designed for Autel Smart Controller v2


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.00)
Port 2: < 1.50 (max. < 2.00)

Beamwidth

Port 1: 70°/40° & 40°/25°
Port 2: 70°/40° & 40°/25°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + pain

Weight

~ 520g (450g Antenna + 70g Mounting)

Dimensions

29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

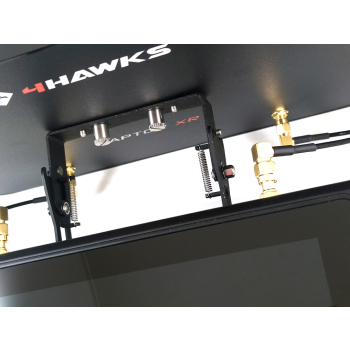

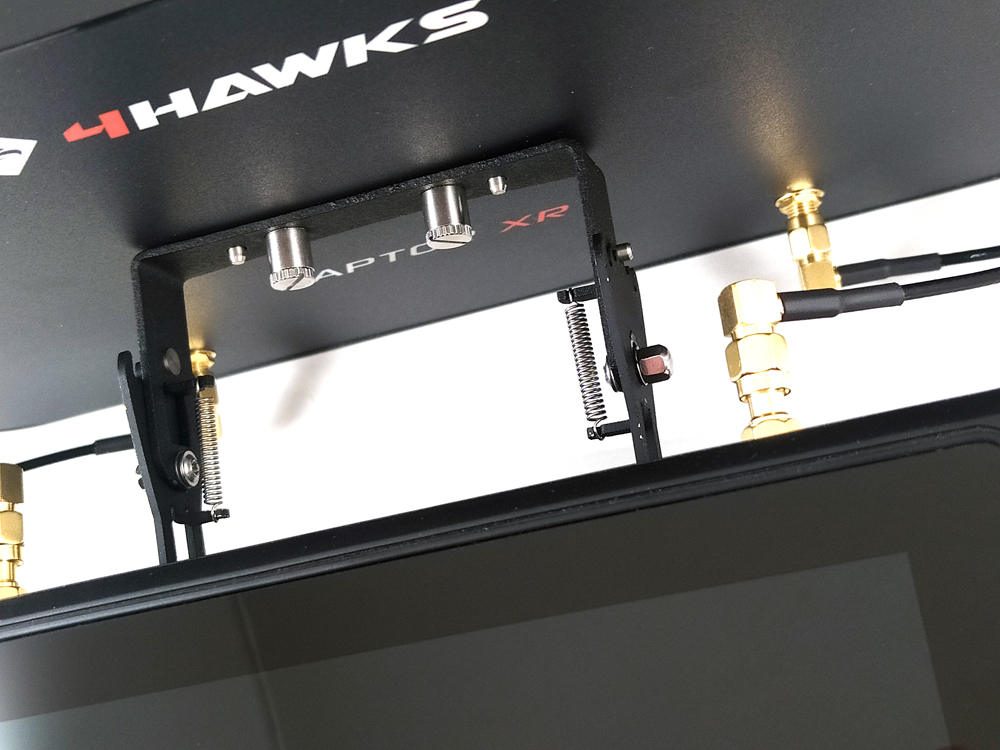

Tilt adjustment

3 tilt positions, OnClick system

alt

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 black pigtails


2x SMA-RPSMA adapter	8mm wrench	2x M2,5x12 socket screws

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.
