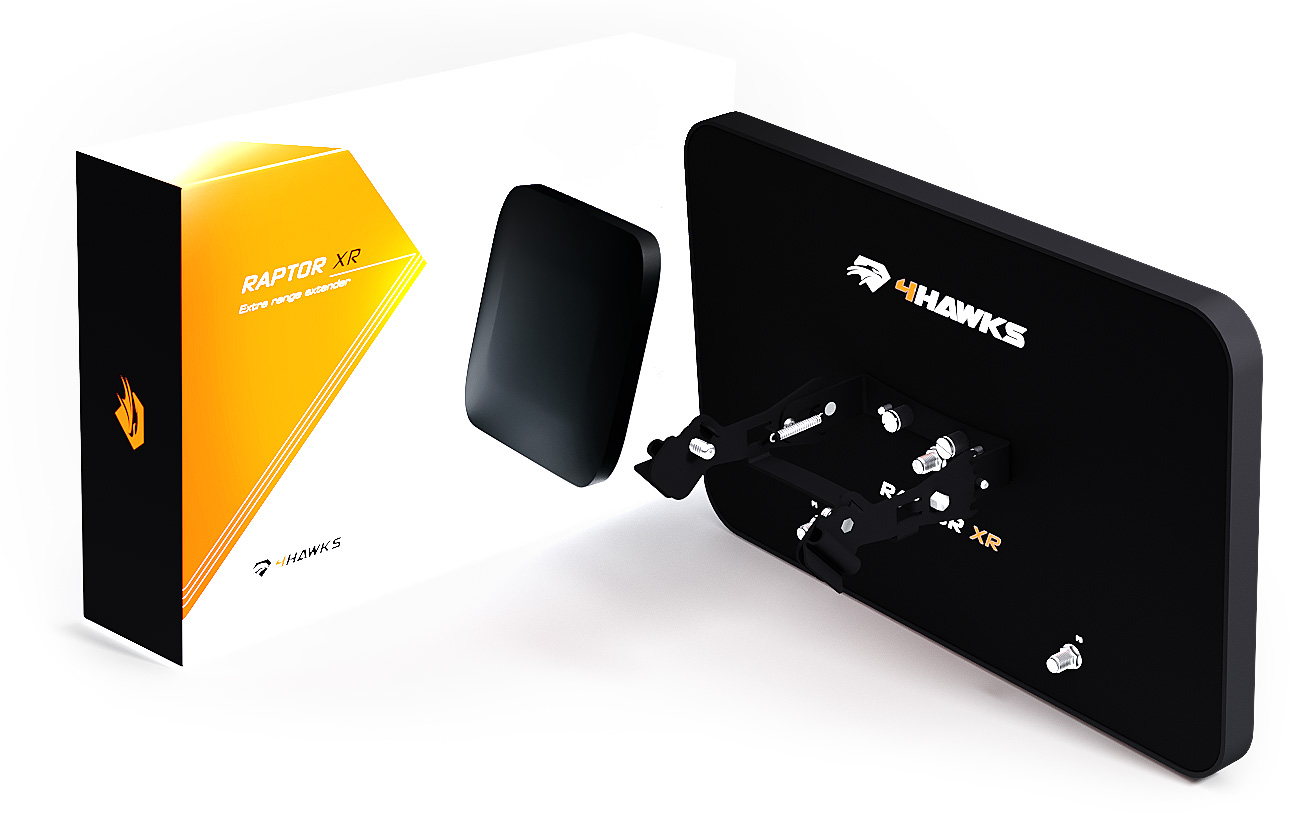

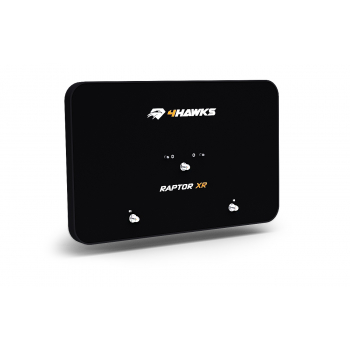

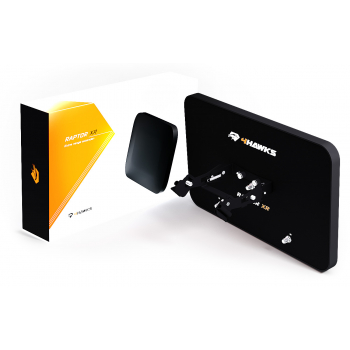

Raptor XR for Autel X-star Premium [A110X]

Raptor XR for Autel X-star Premium [A110X]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A110X

EAN: 853854008179

Condition: New

Weight: 0,70 KG

nett price: 129.00 $

Before purchasing the product, select the required options.

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

QuickAttach mounting system
Adjustable tilt of the range extender
Dedicated pigtails
No modification to the drone itself
Long range extension without external boosters
Design does not contain any removable parts
Complete solution
Controller NOT included

Designed for Autel X-star Premium

Autel X-star Premium is a great choice for beginners and photographers. It is easy to use and allows real-time view of your drone’s camera through a smartphone or tablet. The basic kit allows for up to 25 minutes of uninterrupted flight, maximum speed of 60km/h as well as maximum distance of around 0,7 kilometers.
The greatest advantage of 4Hawks antenna is that it significantly increases the range of Autel X-star Premium, so the drone can reach much further than it initially can. Additionally, the strength of the signal is improved, especially in noisy areas. With 4Hawks range extender, the video quality is always glitch free, thanks to a strong, uninterrupted signal.
4Hawks antenna for Autel X-star Premium model is operating in 900MHz with 9dBi gain as well as 5GHz frequency with 16dBi gain. The entire set is lightweight and uniform (without any loose equipment pieces), however modyfying may require some professional assistance. Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click” to 3 different positions. This way you can be sure that you do not lose the connection with your drone.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 900 - 928 MHz
Port 2: 5.20 - 6.00 GHz

Port 3: 900 - 928 MHz

Gain

Port 1: 9 dBi (+/- 1 dBi)
Port 2: 16 dBi (+/- 1 dBi)

Port 3: 9 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.00)
Port 2: < 1.80 (max. < 2.50)

Port 3: < 1.50 (max. < 2.00)

Beamwidth

Port 1: 80°/70°
Port 2: 35°/20°

Port 1: 80°/70°

Polarization

Port 1: Vertical
Port 2: Vertical

Port 3: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Port 3: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 560g (470g Antenna + 90g Mounting)

Dimensions

29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Port 3: RP-SMA female

Tilt adjustment

5 tilt positions, OnClick system

Mounting type

QuickAttach mounting system

alt

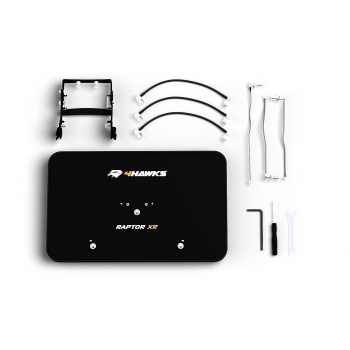

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 black pigtails


2x Dedicated for Autel MMCX pigtails	1x Standard UFL pigtail	Screwdriver (Torx T6) + 8mm wrench + hex 2mm

alt

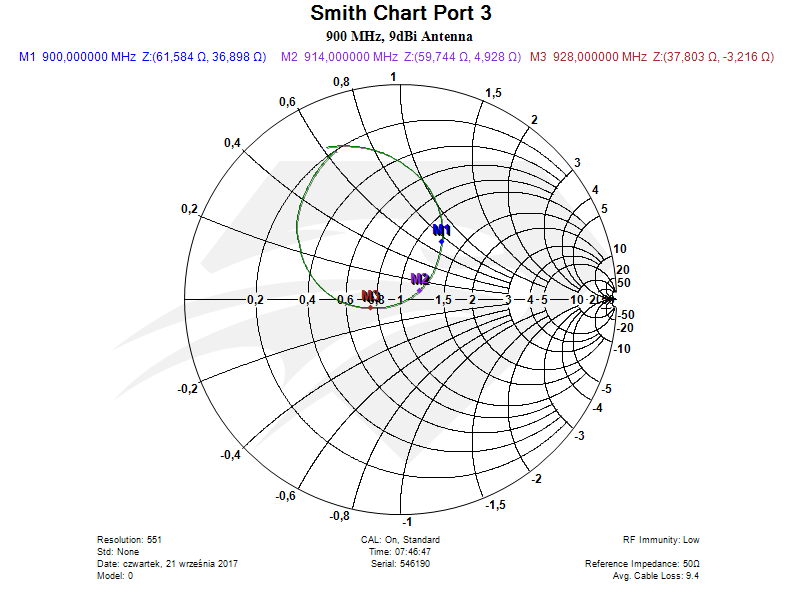

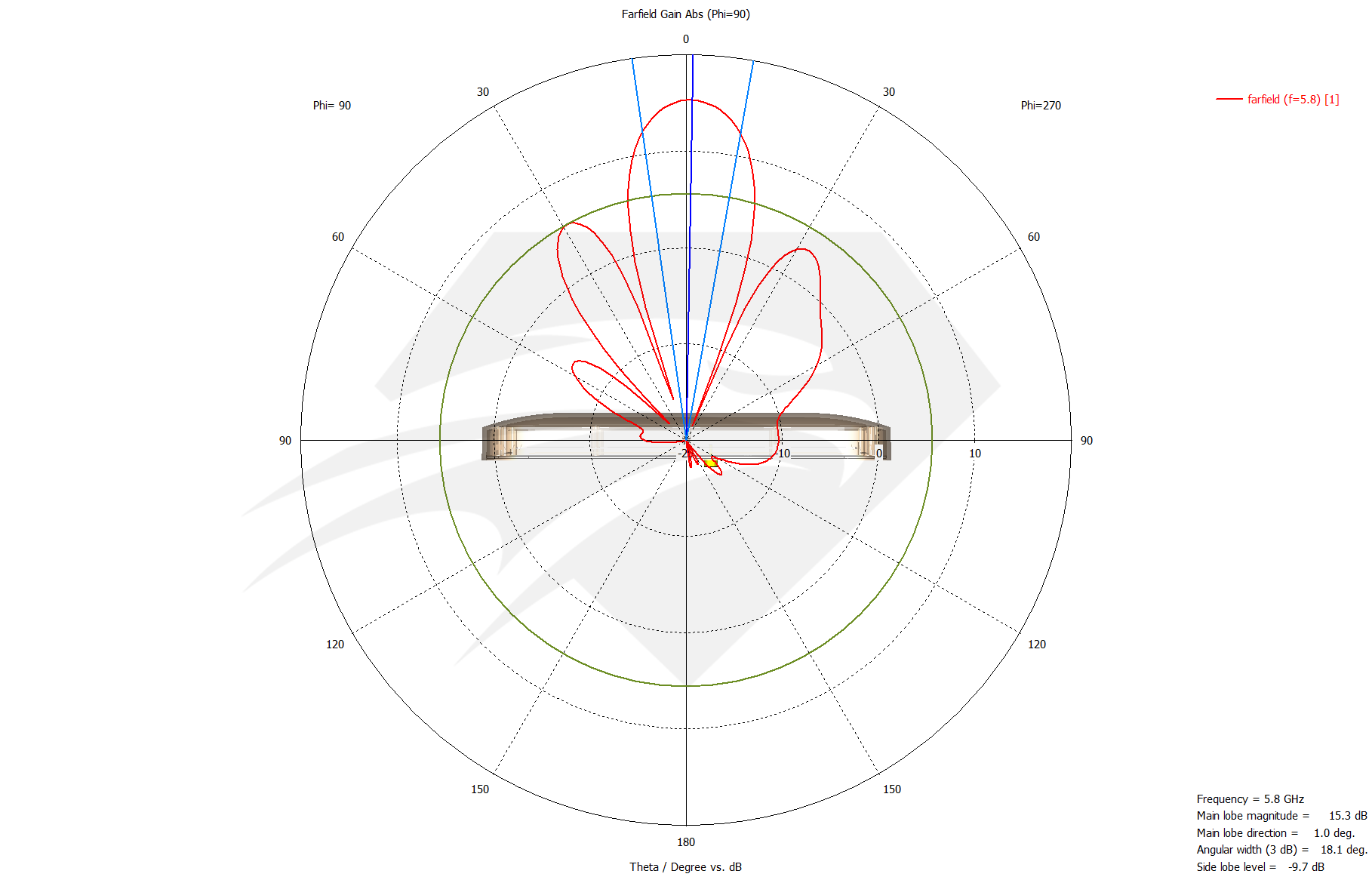

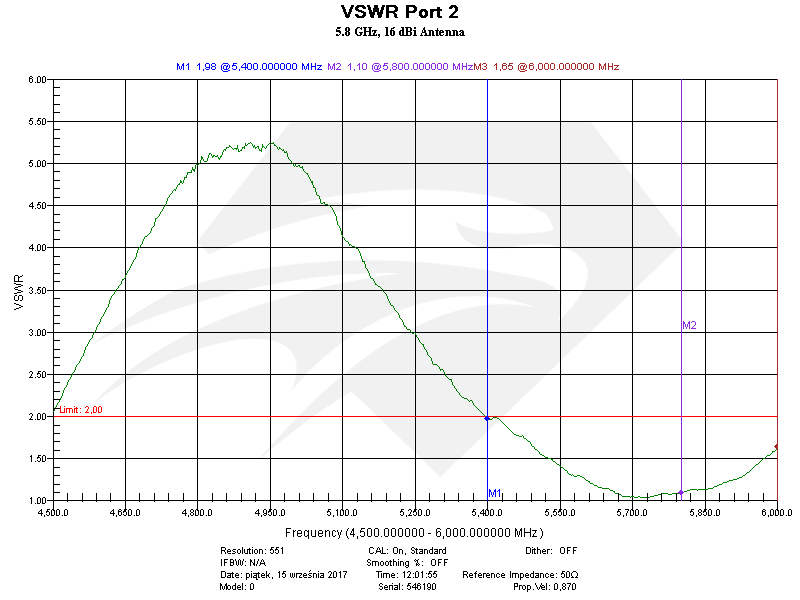

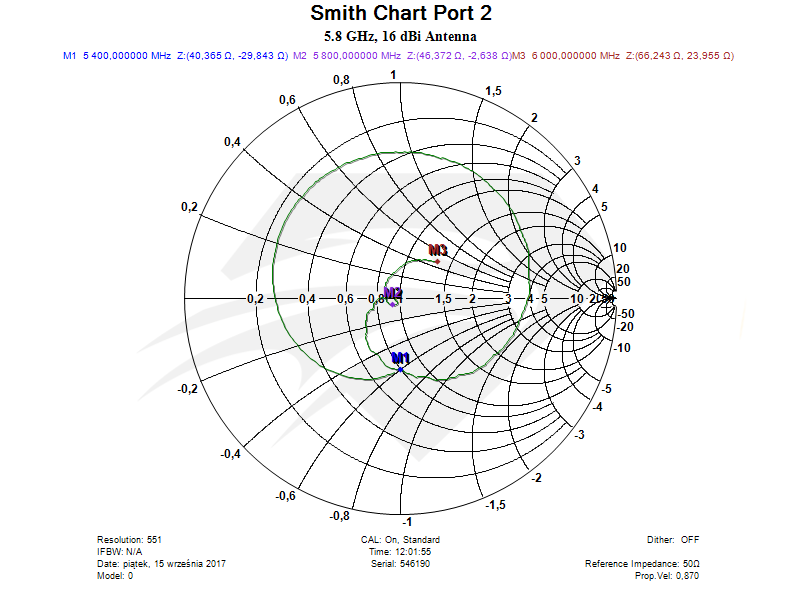

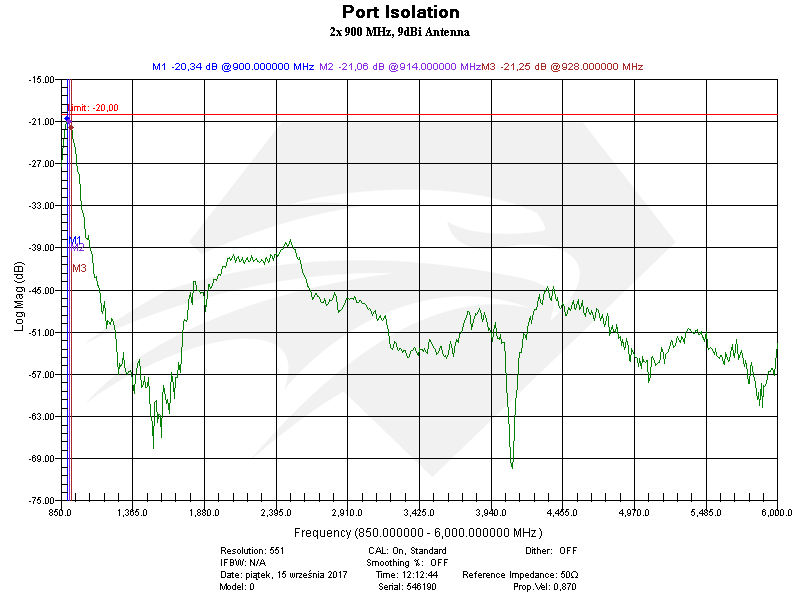

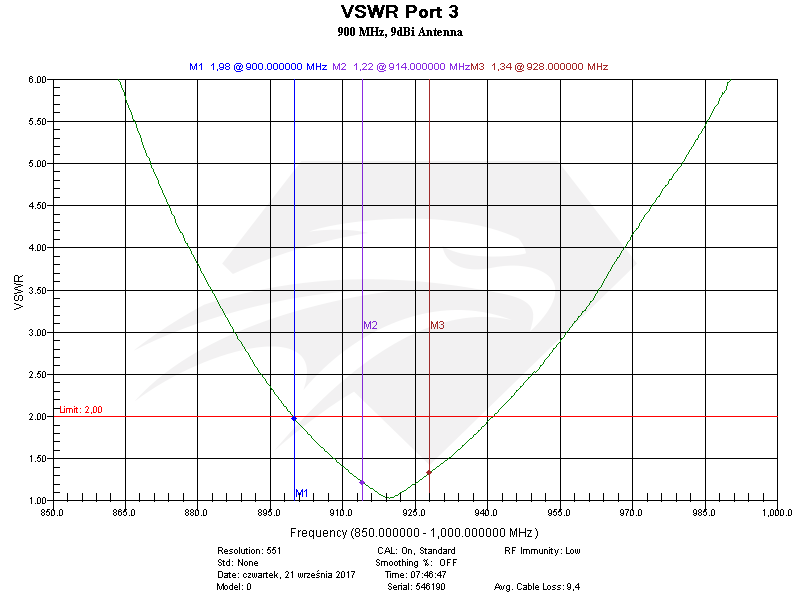

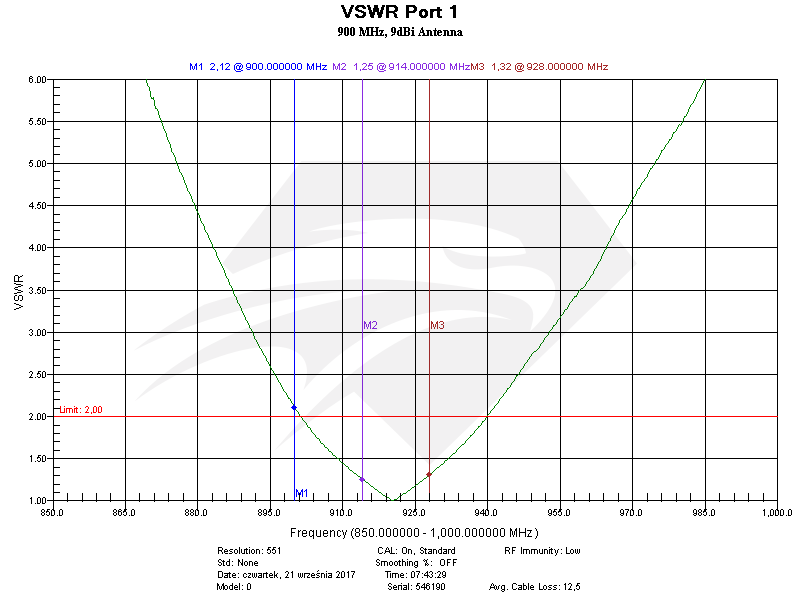

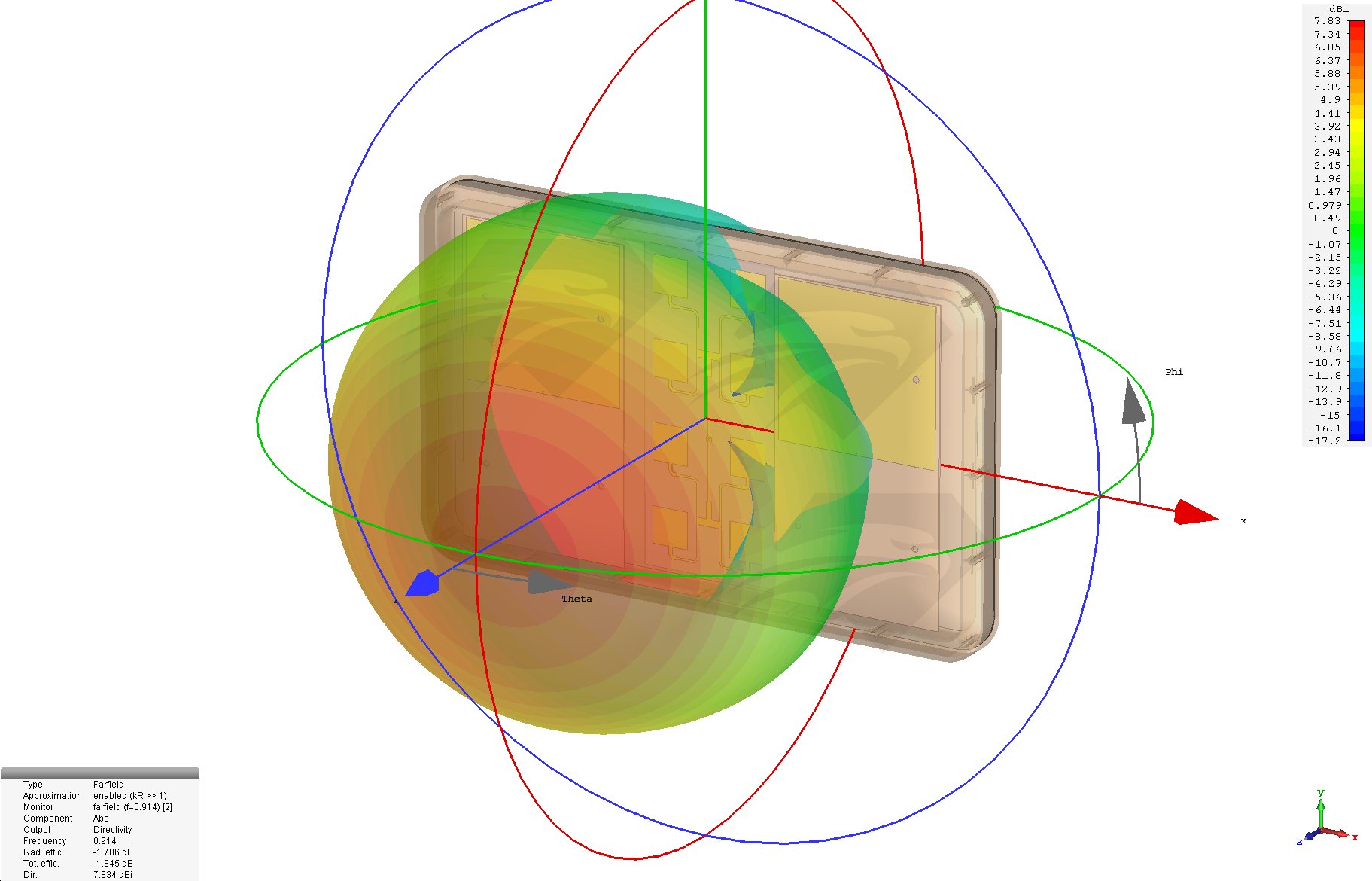

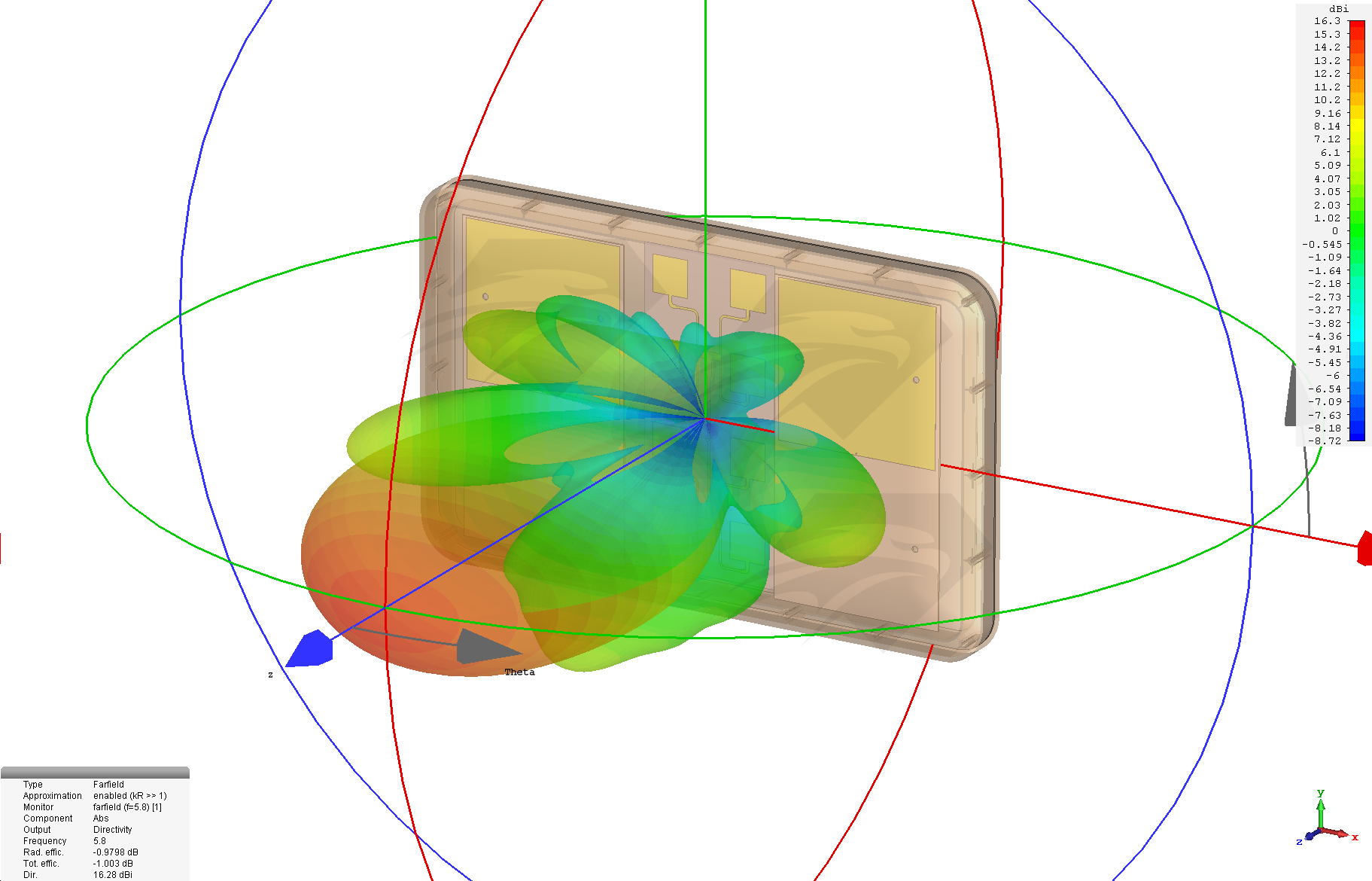

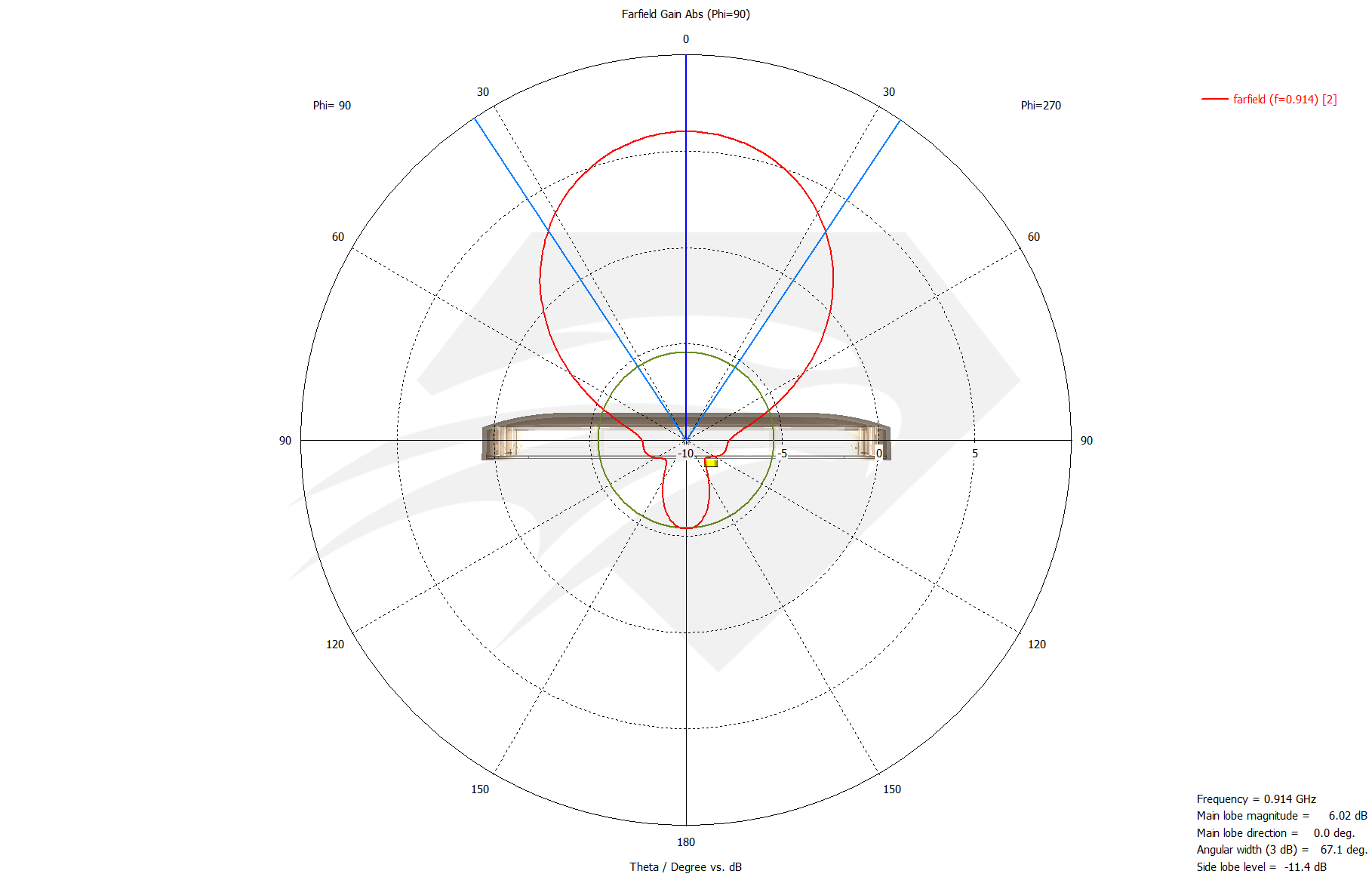

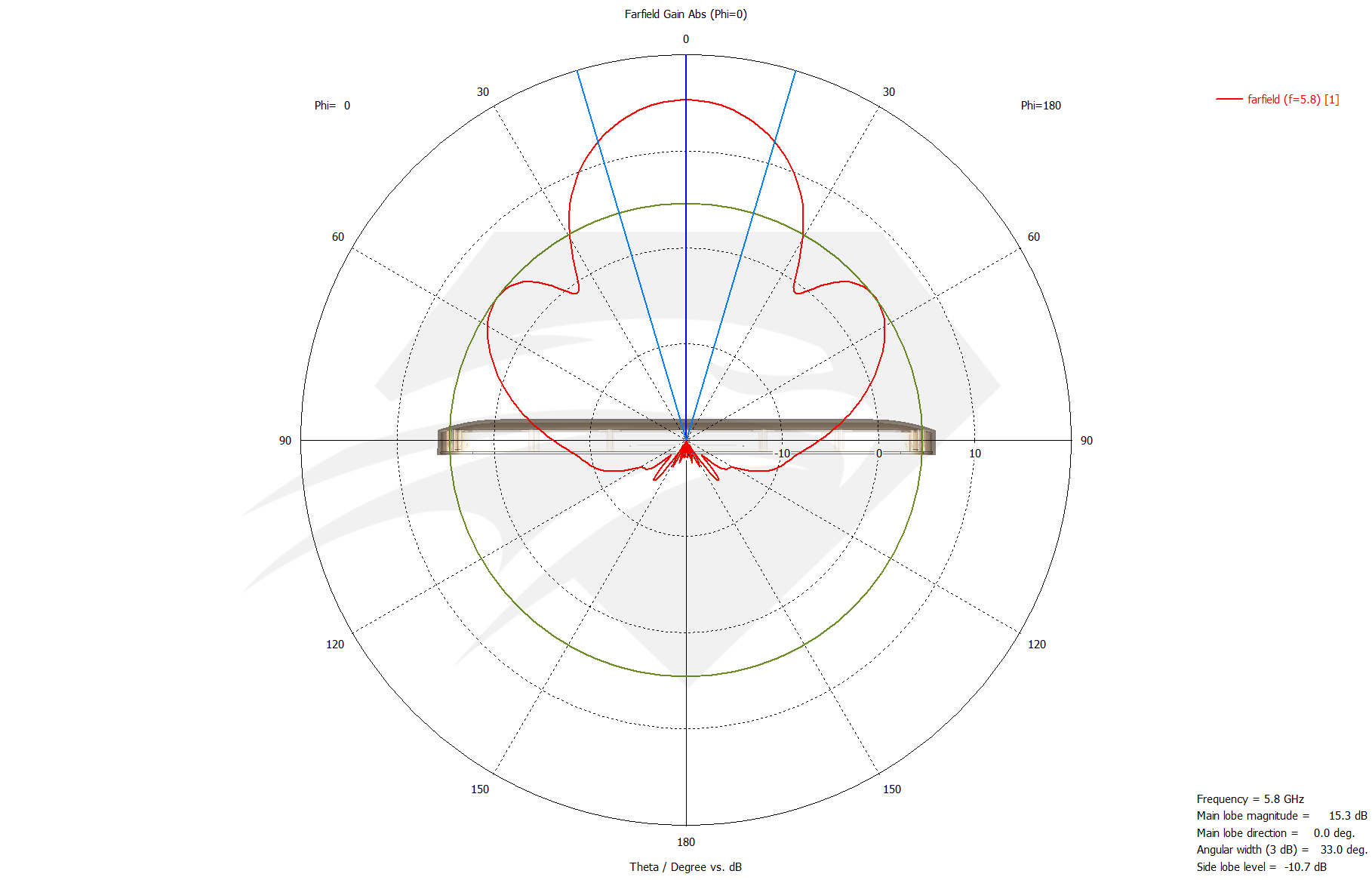

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

Tutorials

Video tutorial with modification of the controller.
