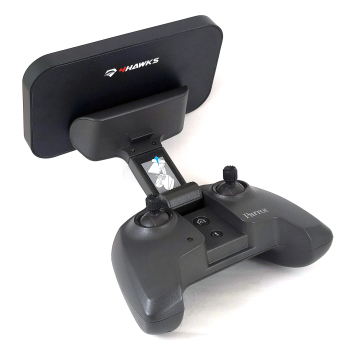

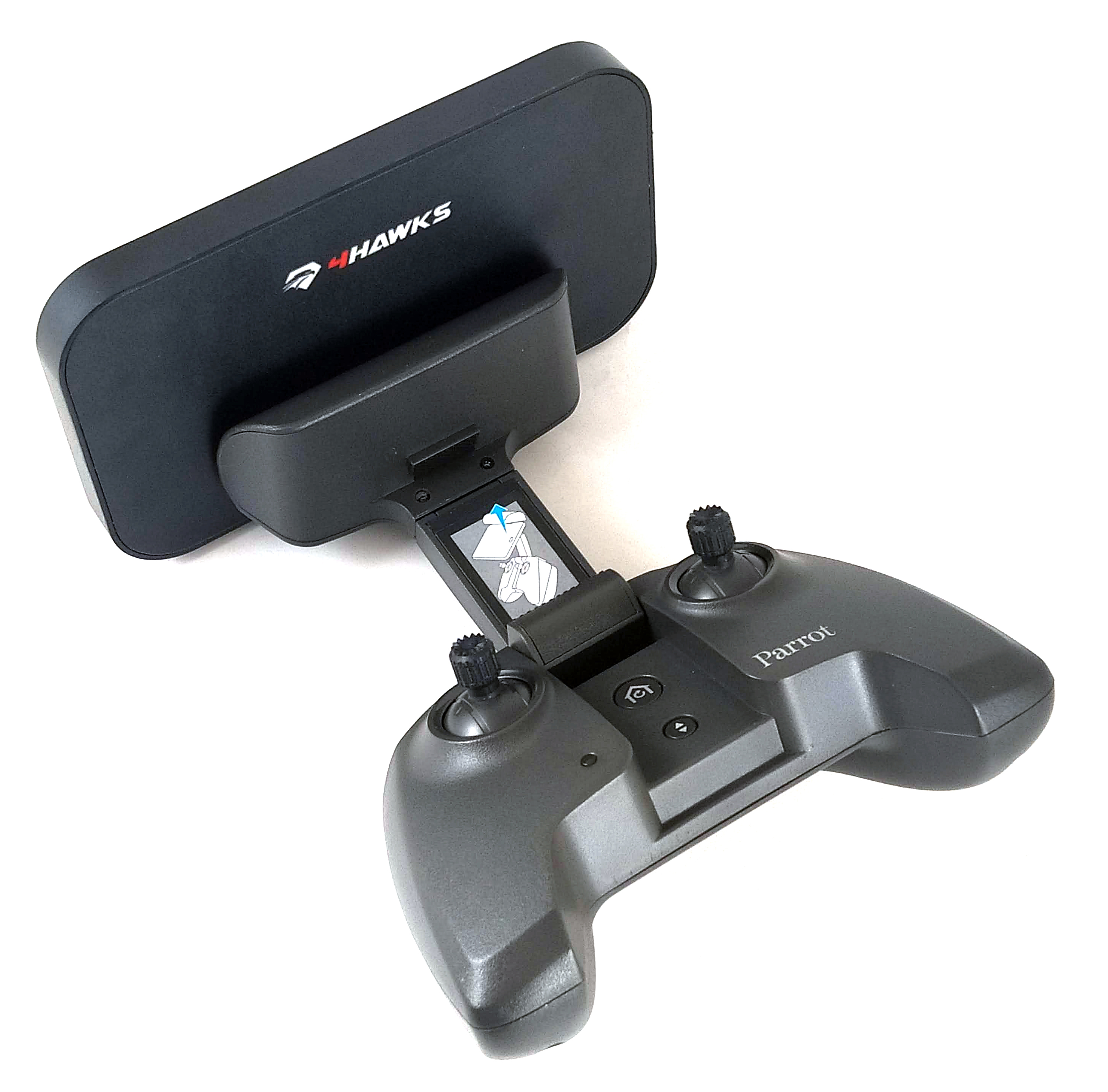

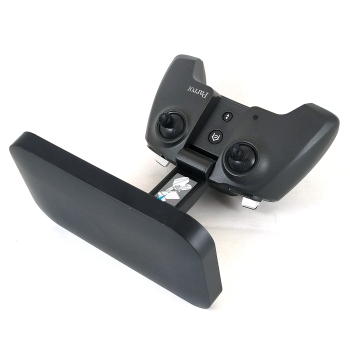

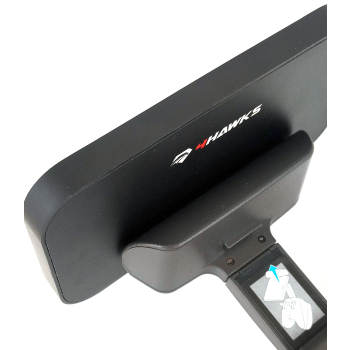

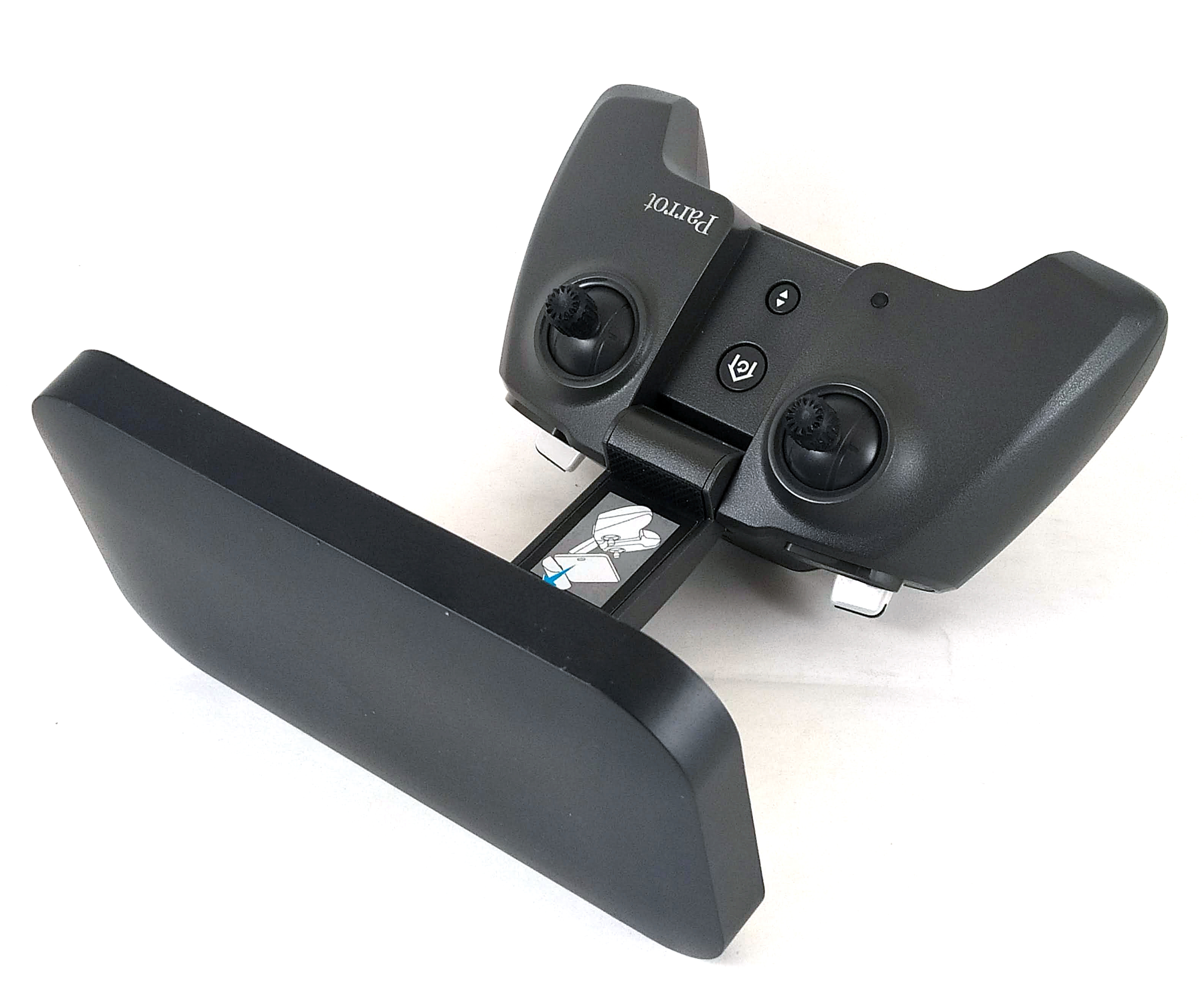

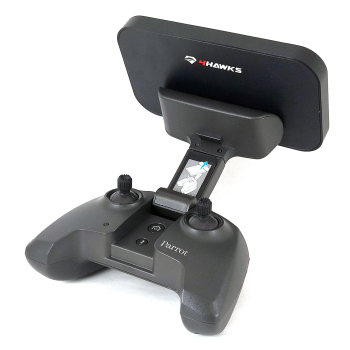

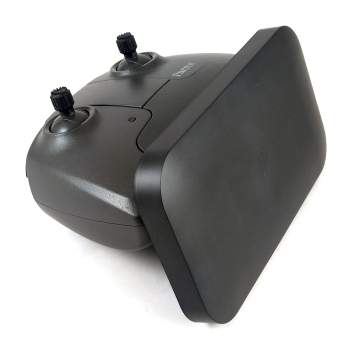

Raptor SR for Parrot ANAFI/ANAFI USA [A136S]

Raptor SR for Parrot ANAFI/ANAFI USA [A136S]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A136S

EAN: 853854008698

Condition: New

Weight: 0,40 KG

nett price: 129.00 $

Before purchasing the product, select the required options.

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Concurrent dual band 2.4 & 5GHz
No modification to the drone itself
Long range extension without external boosters
Design does not contain any removable parts
Complete solution
Controller NOT included

Designed for Parrot ANAFI/ANAFI USA


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)

Beamwidth

Port 1: 90°/65° & 55°/55°
Port 2: 90°/65° & 55°/55°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, FR4 PCB
Mounting: Stainless steel + paint

Weight

~ 180g (110g Antenna + 70g Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt

Tutorials

Video tutorial with modification of the controller.
