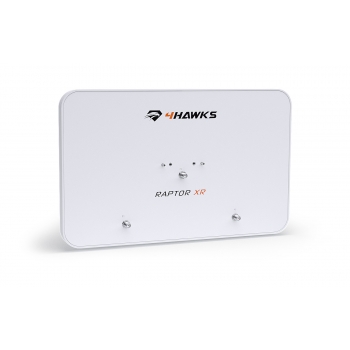

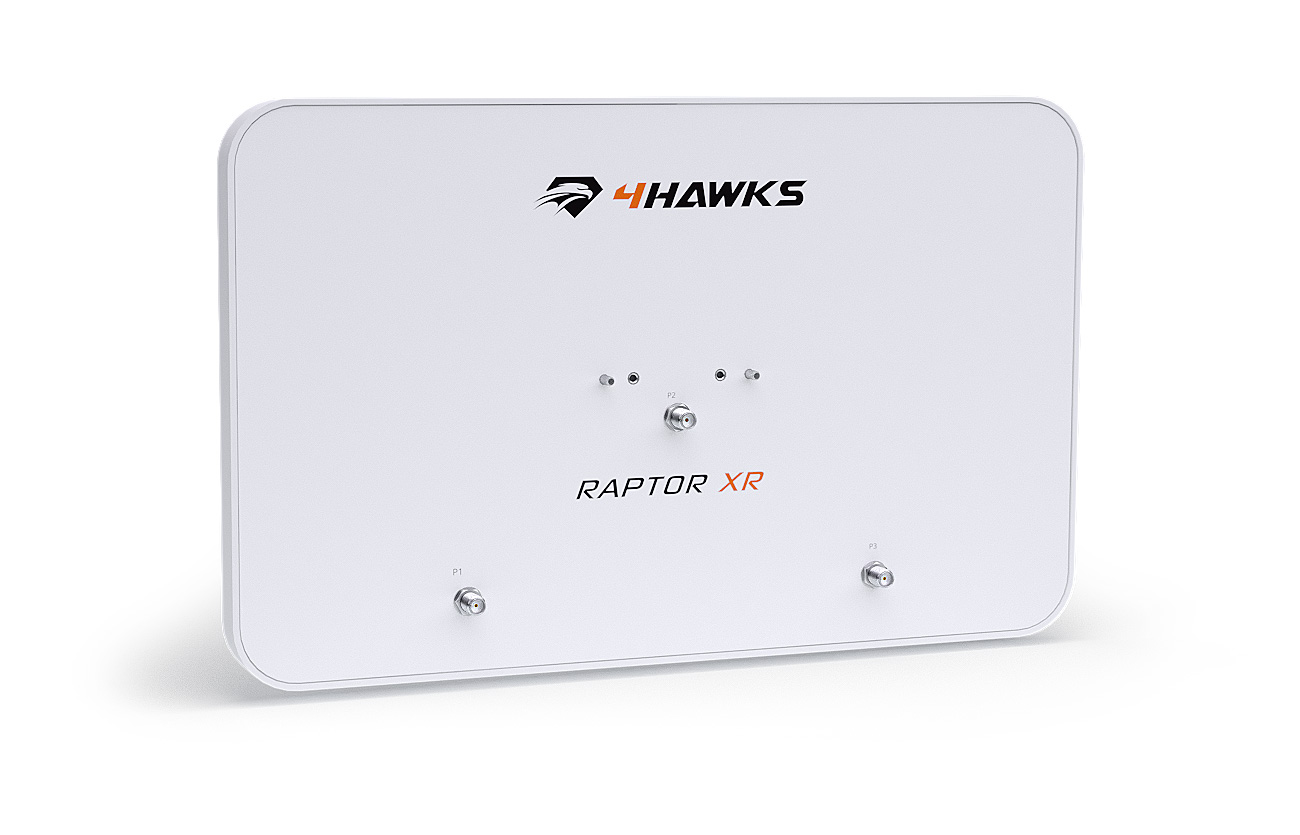

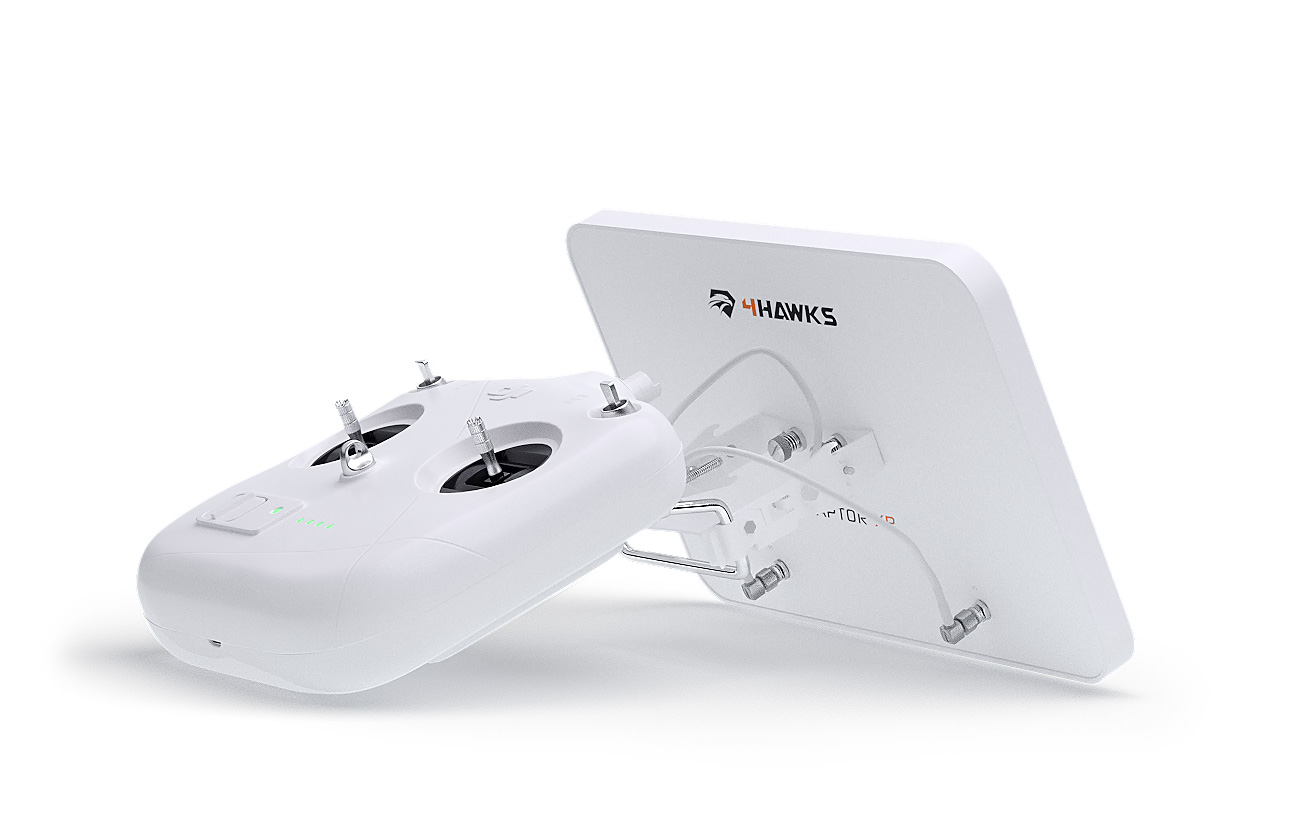

Raptor XR for DJI Phantom 3 Standard [A104X]

Raptor XR for DJI Phantom 3 Standard [A104X]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A104X

EAN: 853854008063

Condition: New

Weight: 0,70 KG

nett price: 169.00 $

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Maximize performance
QuickAttach mounting system
Adjustable tilt of the range extender
No modification to the drone itself
Long range extension without external boosters
Design does not contain any removable parts
Complete solution
Controller NOT included

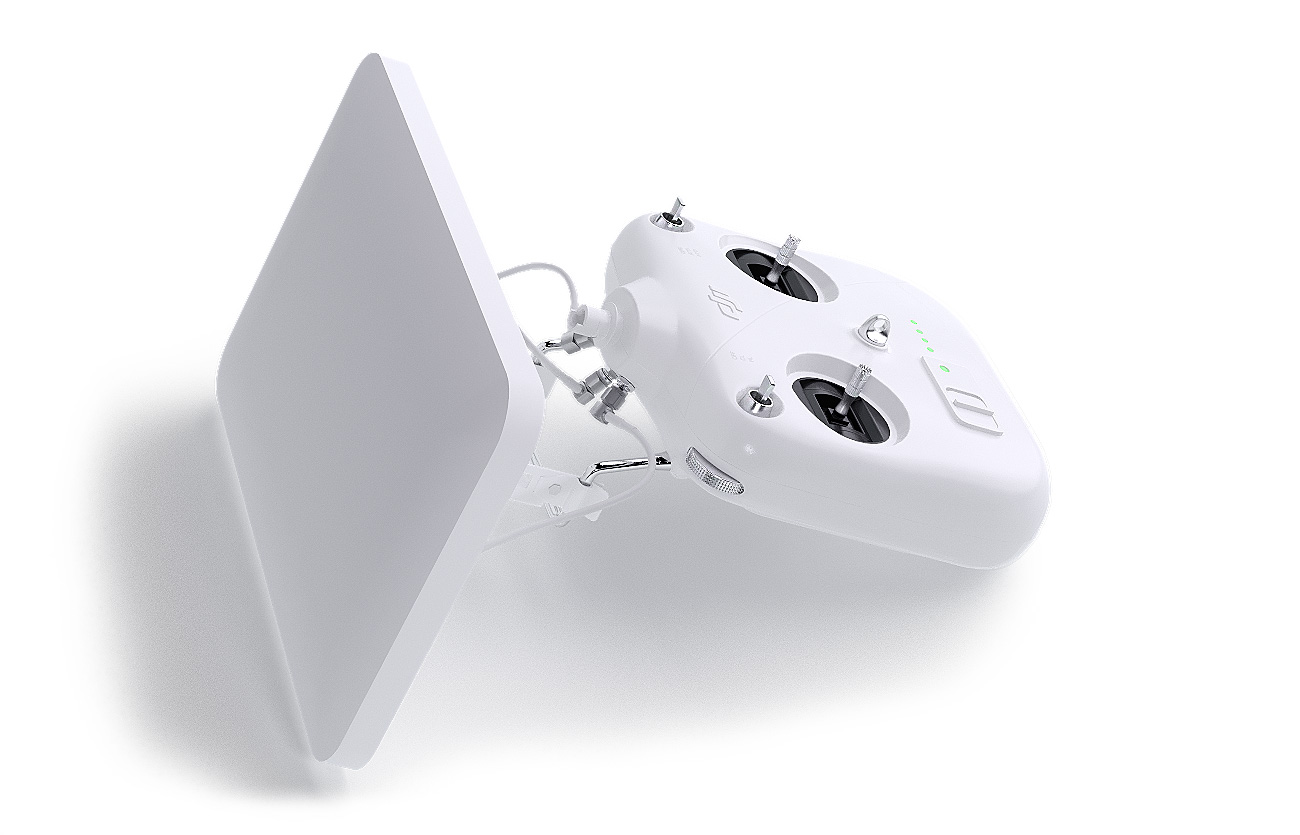

Designed for DJI Phantom 3 Standard

Dji Phantom 3 standard is a DJI drone with an old controller model. With its fast maximum speed of 60 km/h and flight time of 25 minutes, Phantom 3 is an is a good choice for drone enthusiasts. Users who value range over anything else should not be disappointed with this model. With 4Hawks range extender antenna, Dji Phantom 3 is further improved, by enhancing signal from oblique antenna signals that ignores noise exceptionally well - this in return allows Phantom to maximize its range in noisy areas. 4Hawks antenna also increases the range of Dji Phantom 3, so the drone can reach even further than ever before.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz
Port 2: 5.20 - 6.00 GHz

Port 3: 2.40 - 2.50 GHz

Gain

Port 1: 14 dBi (+/- 1 dBi)
Port 2: 16 dBi (+/- 1 dBi)

Port 3: 14 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.20 (max. < 1.40)
Port 2: < 1.80 (max. < 2.50)

Port 3: < 1.20 (max. < 1.40)

Beamwidth

Port 1: 35°/45°
Port 2: 35°/20°

Port 3: 35°/45°

Polarization

Port 1: Vertical
Port 2: Vertical

Port 3: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Port 3: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 560g (470g Antenna + 90g Mounting)

Dimensions

29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Port 3: RP-SMA female

Tilt adjustment

5 tilt positions, OnClick syste

Mounting type

On SMA connectors (Permanent)

alt

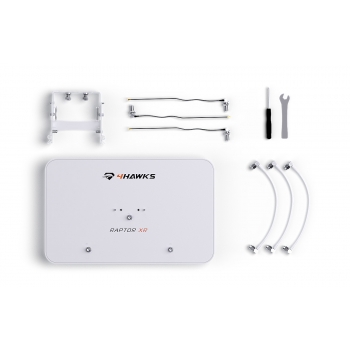

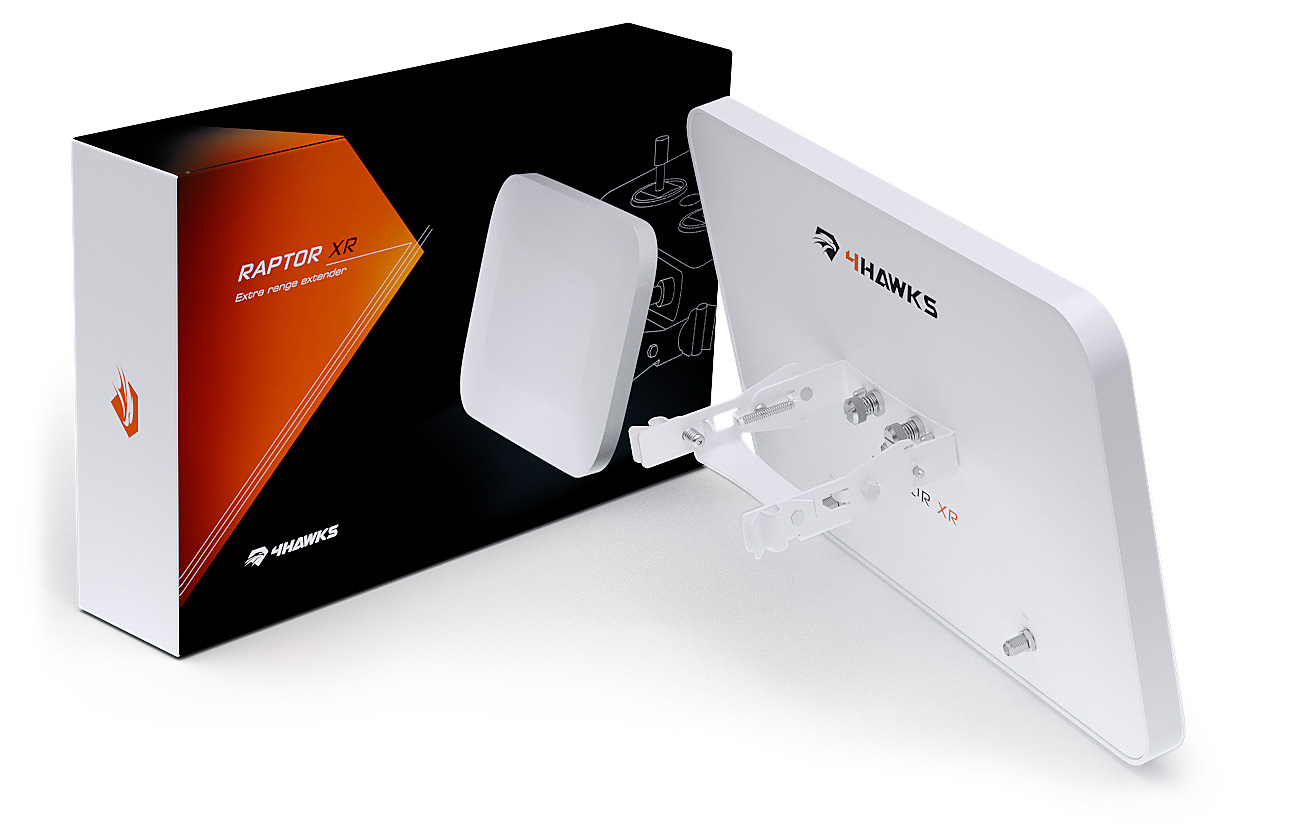

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	3x RP-SMA male RG316 white pigtails


3x Standard UFL pigtails	Screwdriver (Philips) + 8mm wrench

alt

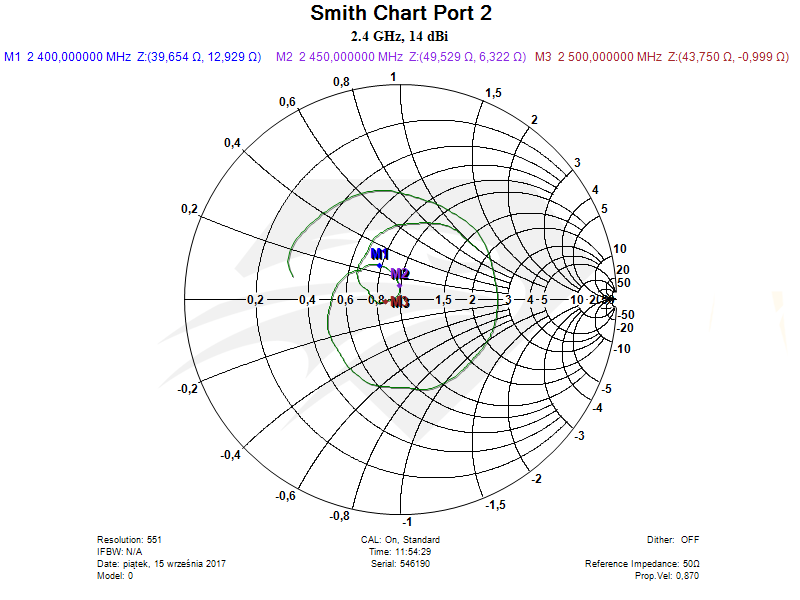

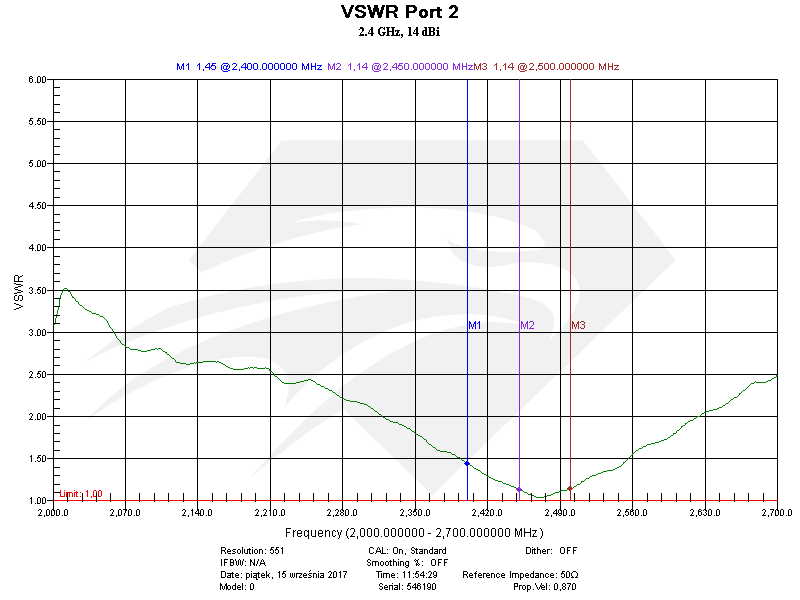

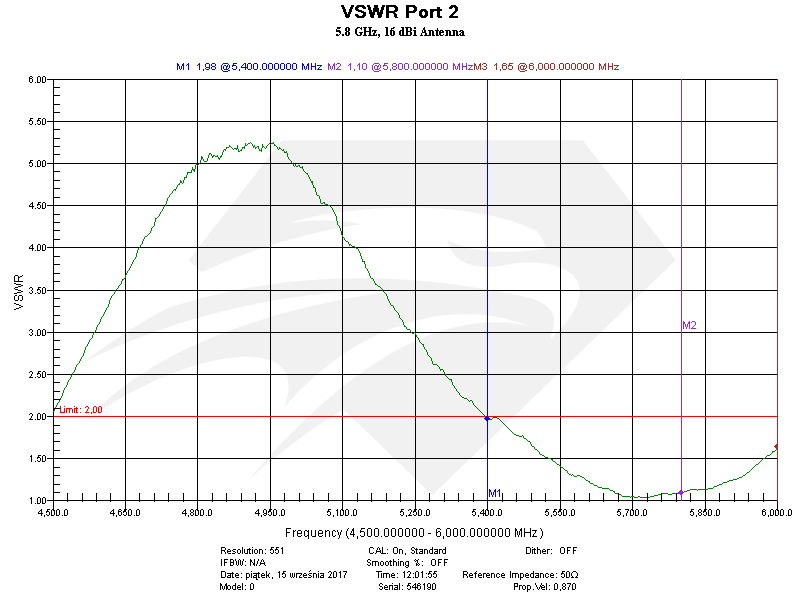

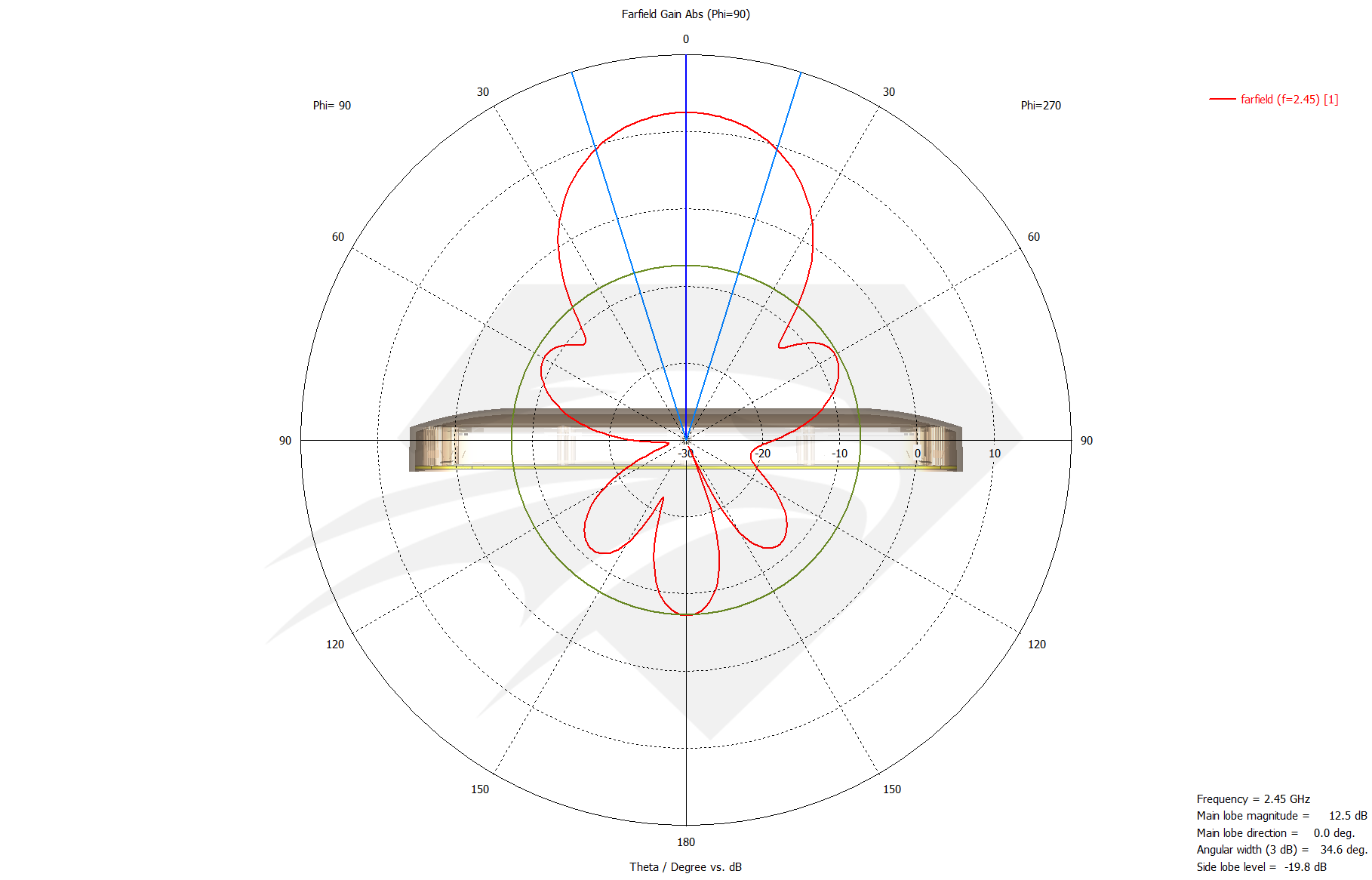

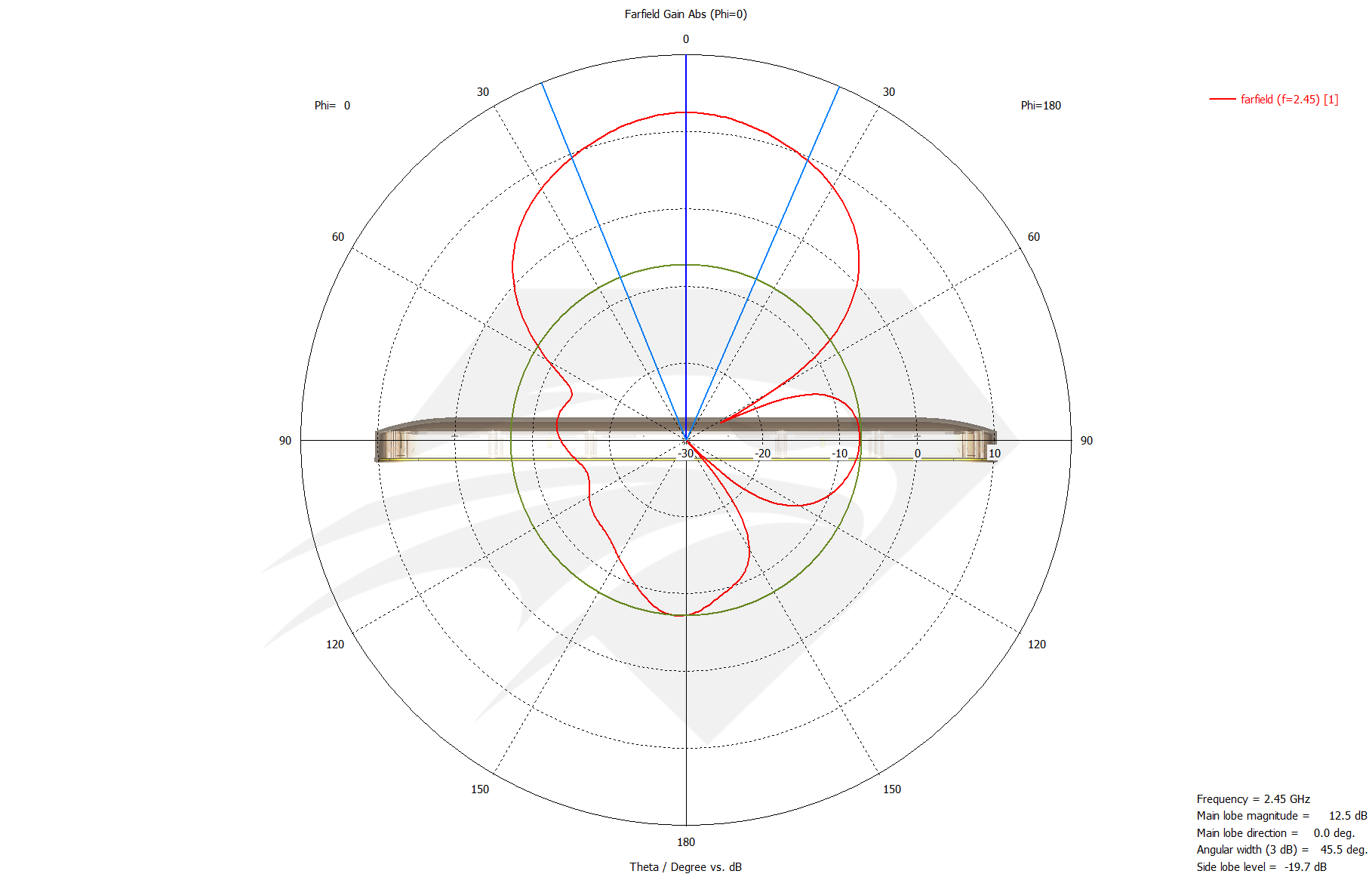

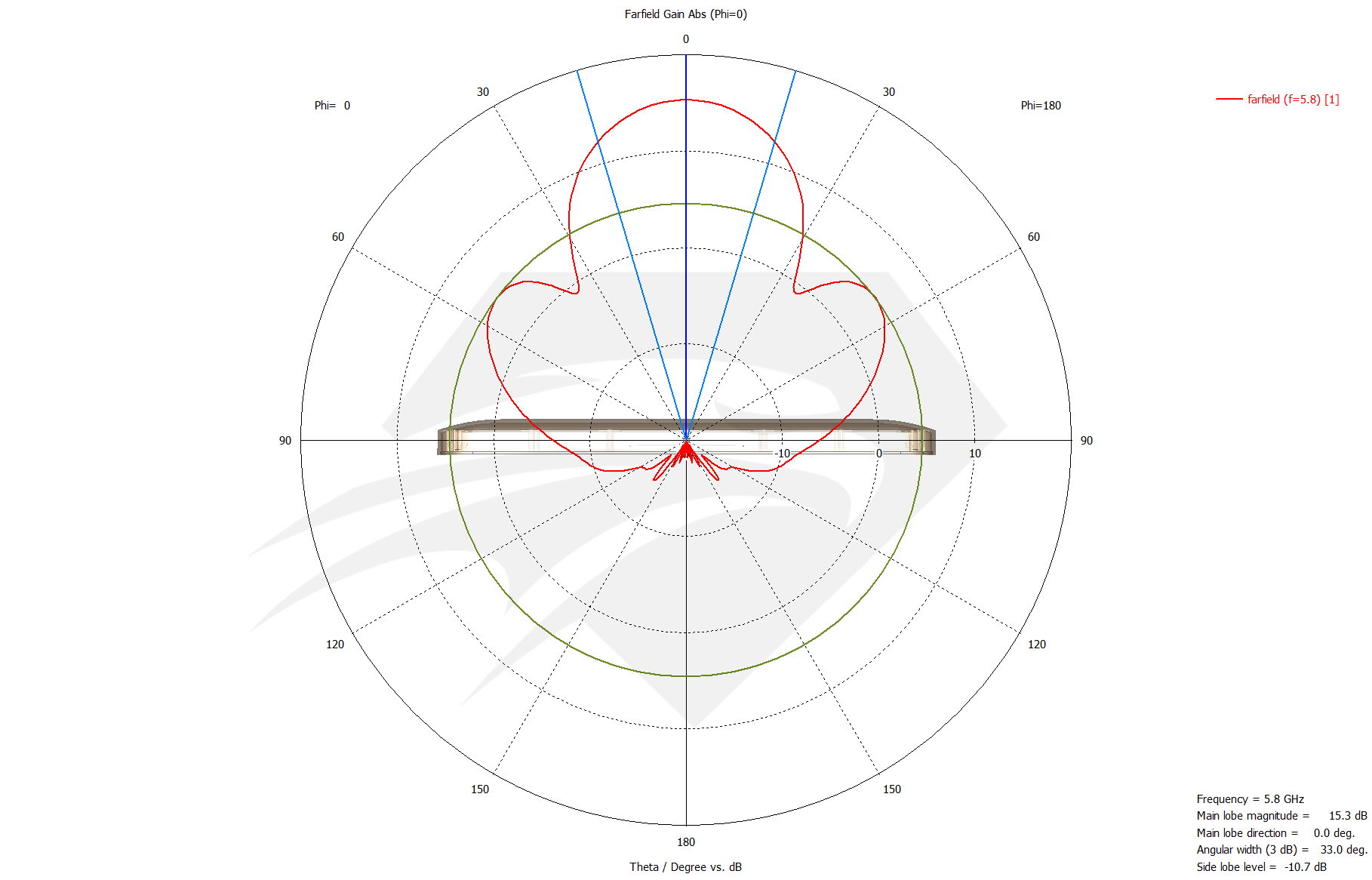

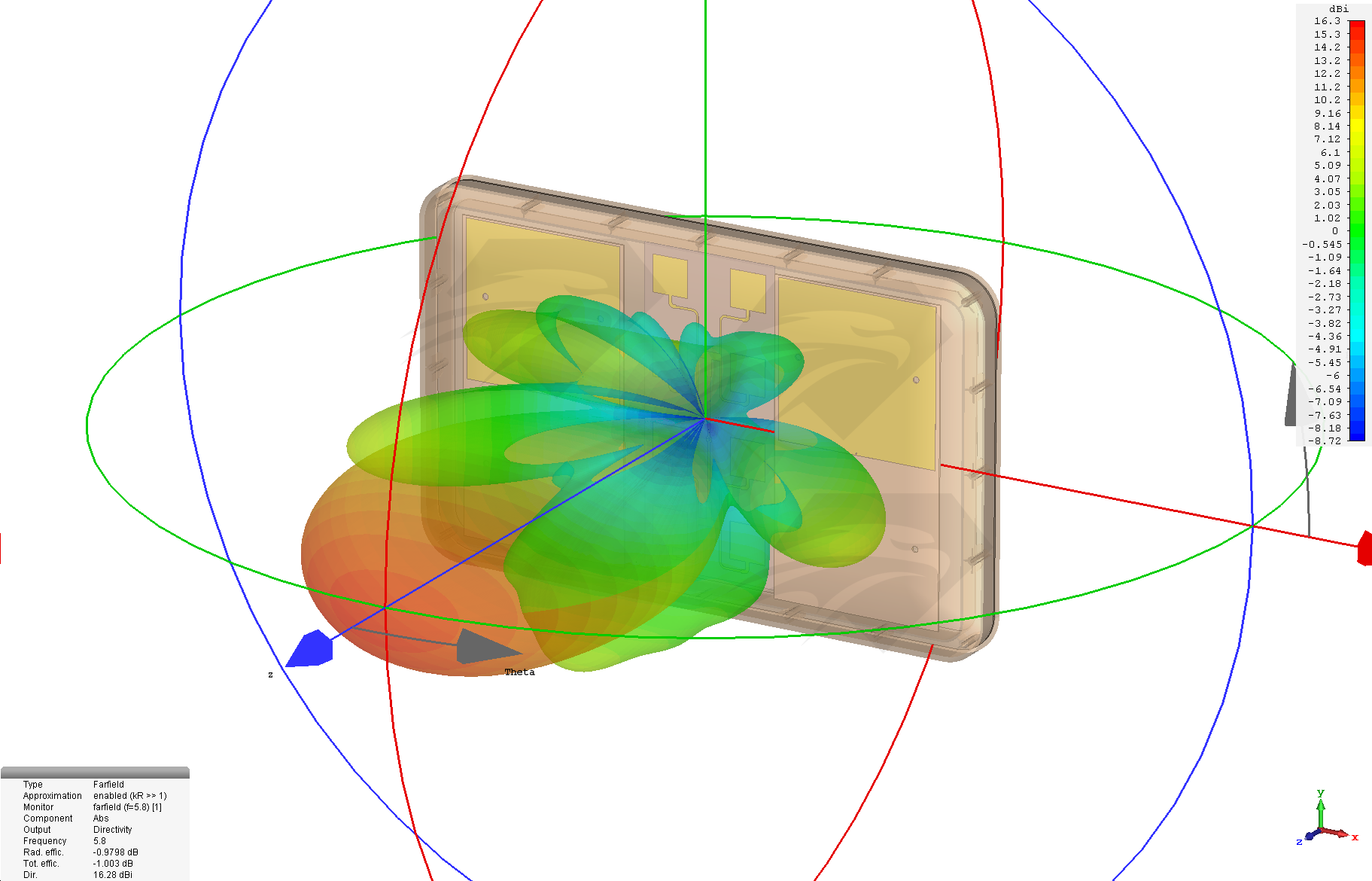

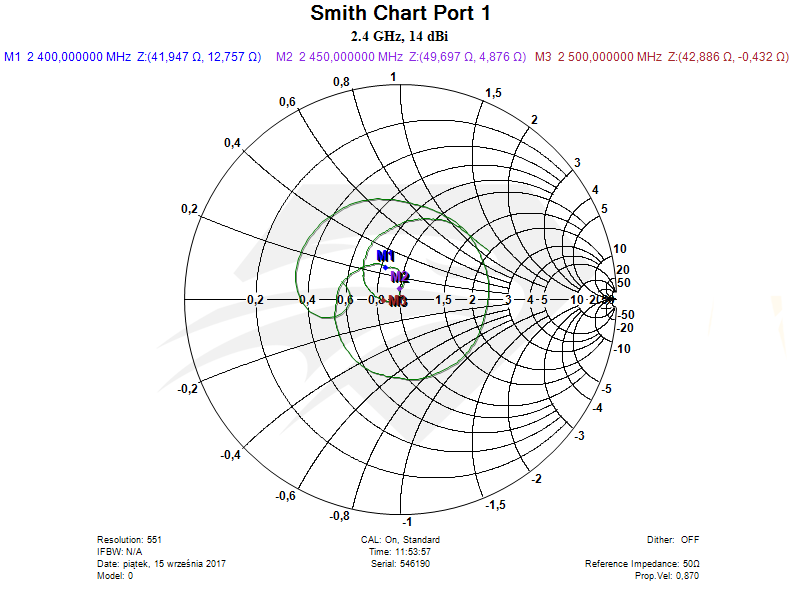

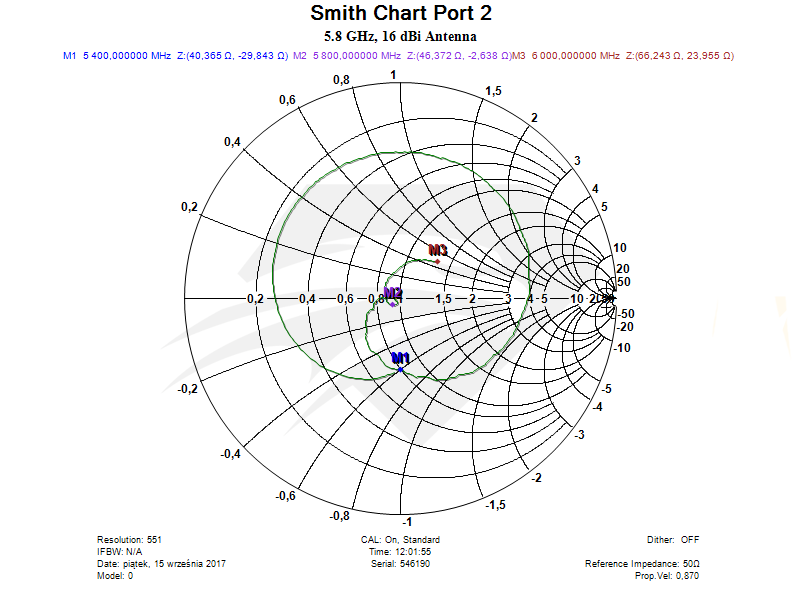

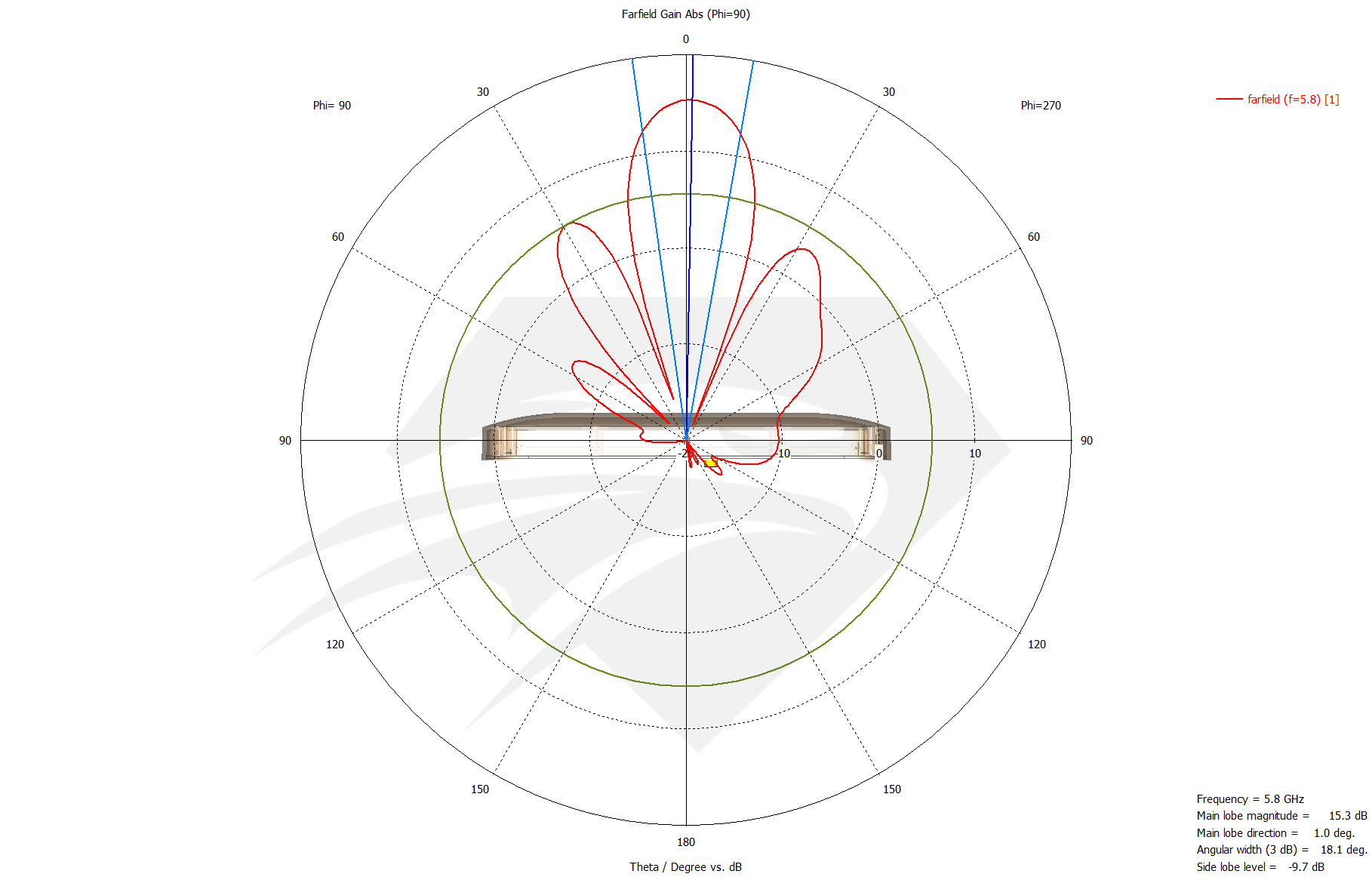

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt

Tutorials

Video tutorial with modification of the controller.
