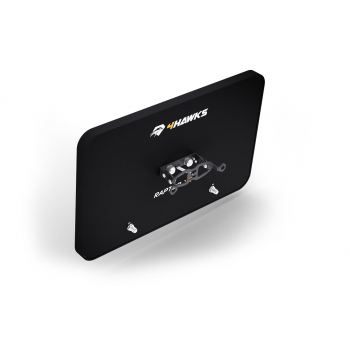

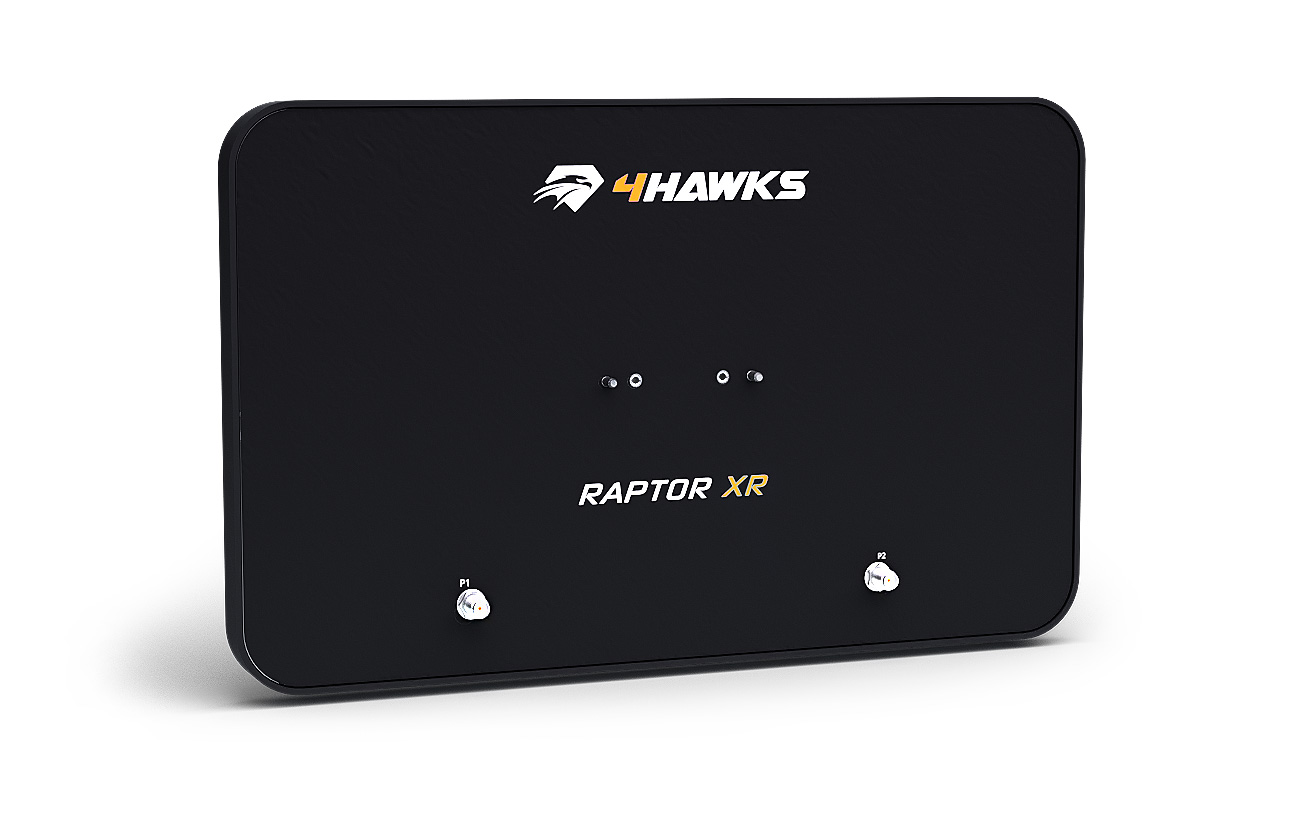

Raptor XR for DJI Mavic Air [A127X]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A127X

EAN: 853854008421

Condition: New

Weight: 0,70 KG

nett price: 159.00 $

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Maximize performance
Concurrent dual band 2.4 & 5GHz
No modification to the drone itself
Long range extension without external boosters
Design does not contain any removable parts
Complete solution
Controller NOT included

Designed for DJI Mavic Air

Designed for drone enthusiasts, Dji Mavic Air is perfect for holiday trips. Its long range allows its user to reach places that were earlier completely inaccessible, such as deep forests, canyons, lakes etc. The built-in camera allows recording videos in 4k.
4Hawks antenna for Dji Mavic Air model is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies The concept behind the look of the antenna was to make it look like it was a part of the drone by default. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability. Mounting the range extender leads to permanent changes with the remote controller. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.a


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.00)
Port 2: < 1.50 (max. < 2.00)

Beamwidth

Port 1: 70°/40° & 40°/25°
Port 1: 70°/40° & 40°/25°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 520g (450g Antenna + 70g Mounting)

Dimensions

29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Tilt adjustment

3 tilt positions, OnClick system

Mounting type

On SMA connectors (Permanent)

alt

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 black pigtails


2x Dedicated for Mavic U.FL pigtails	2x screwdriver (Torx T6 & Philips) + 8mm wrench	Additional Smart Controller tools

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt

Tutorials

Video tutorial with modification of the controller.
