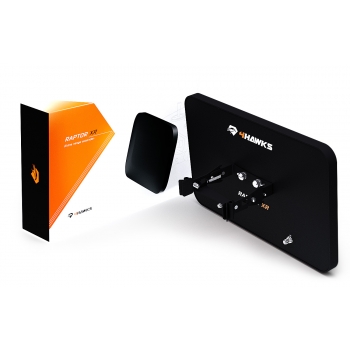

Raptor XR for DJI Matrice (+Raptor Link) [A113X]

Raptor XR for DJI Matrice (+Raptor Link) [A113X]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A113X

EAN: 853854008131

Condition: New

Weight: 0,70 KG

nett price: 179.00 $

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Maximize performance
QuickAttach mounting system
Adjustable tilt of the range extender
Dedicated pigtails
No drilling required
No modification to the drone itself
Long range extension without external boosters
Design does not contain any removable parts
Complete solution
Controller NOT included

Designed for DJI Matrice series

Dji Matrice is a model that is best known for its industrial usage with a big payload with long flight time. the drone is equipped with exceptional obstacle and aircraft detection systems. It is also possible to operate the drone with two controllers. The basic kit allows for up to 38 minutes of uninterrupted flight, maximum speed of 65km/h.
4Hawks antenna for Dji Matrice model is operating in 2.4GHz with 14dBi gain & 5.8 GHz with 14 dBi with additional antenna installed inside controller working in 5GHz frequency that allows operating the drone with 2 controllers. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability.
Modifying the controller might require an assistance of a professional.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.20 (max. < 1.40)
Port 2: < 1.20 (max. < 1.40)

Beamwidth

Port 1: 70°/40° & 40°/25°
Port 1: 70°/40° & 40°/25°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 540g (450g Antenna + 90g Mounting)

Dimensions

29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Tilt adjustment

5 tilt positions, OnClick system

Mounting type

QuickAttach

alt

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 black pigtails


2x Dedicated for Matrice MMCX pigtails	Screwdriver (Philips) + 8mm wrench + hex 1.5mm

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt

Tutorials

Video tutorial with modification of the controller.

alt
