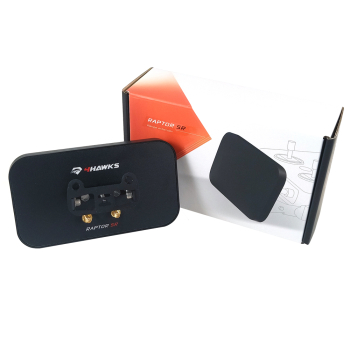

Raptor SR for DJI RC Controller [A138S]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A138S

EAN: 853854008728

Condition: New

Weight: 0,40 KG

nett price: 139.00 $

Before purchasing the product, select the required options.

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Concurrent dual band 2.4 & 5GHz
Long range extension without external boosters
Complete solution
Controller NOT included

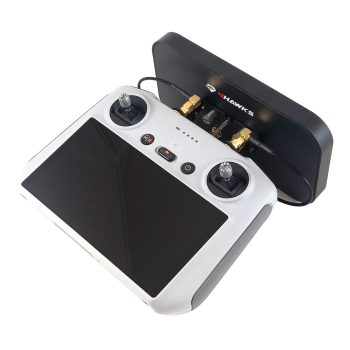

Designed for DJI RC Controller


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)

Beamwidth

Port 1: 90°/65° & 55°/55°
Port 2: 90°/65° & 55°/55°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, FR4 PCB
Mounting: Stainless steel + paint

Weight

~ 180g (110g Antenna + 70g Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Tilt adjustment

5 tilt positions, OnClick system

Mounting type

On SMA connectors (Permanent)

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt

Tutorials

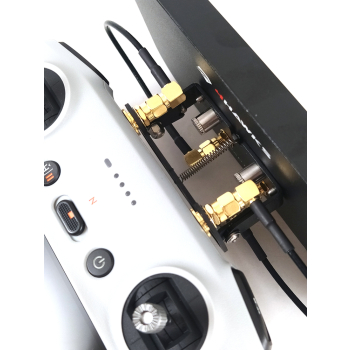

Video tutorial with modification of the controller.
