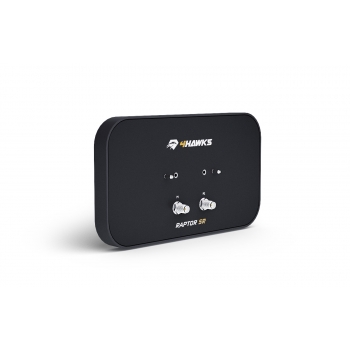

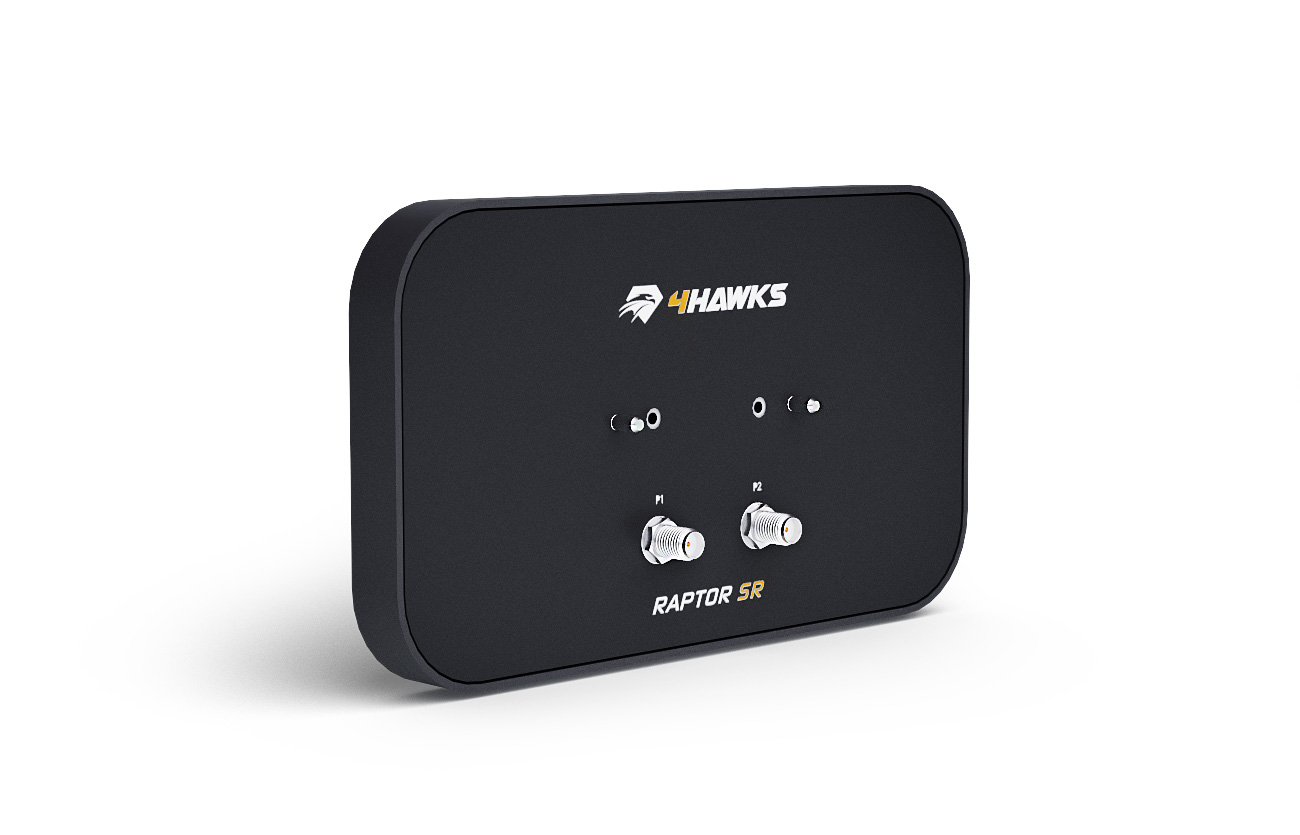

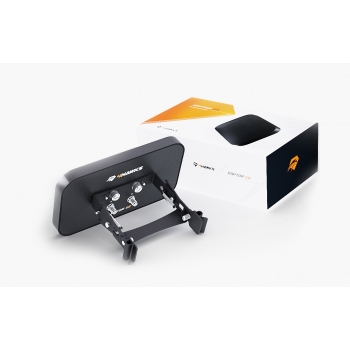

Raptor SR for DJI Inspire 2 (Obsidian) [A106S]

Raptor SR for DJI Inspire 2 (Obsidian) [A106S]

Availability: Always on stock

The cost of shipping: from 0.00 $

Product code: A106S

EAN: 853854008100

Condition: New

Weight: 0,40 KG

nett price: 149.00 $

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Concurrent dual band 2.4 & 5GHz

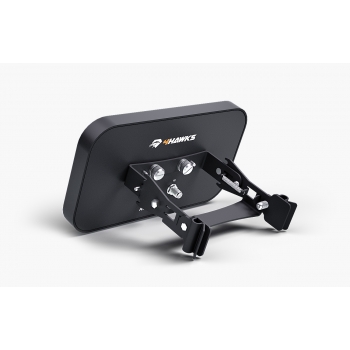

QuickAttach mounting system
Adjustable tilt of the range extender
Dedicated pigtails
No drilling required
No modification to the drone itself
Design does not contain any removable parts
Complete solution
Controller NOT included

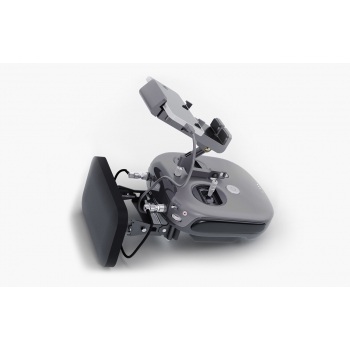

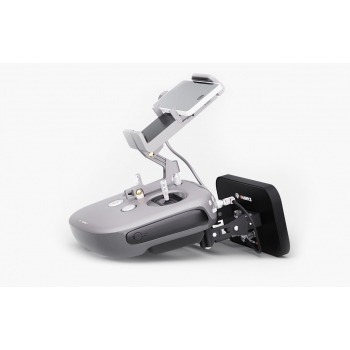

Designed for DJI Inspire 2

DJI Inspire 2 is one of newer models made for professional users. It is definitely a flagship of professional models currently available on the market. The drone’s body is made from magnesium alloys. Cameras included are easily interchangeable with quality up to 5.2k. The basic kit allows for up to 30 minutes of uninterrupted flight, maximum speed of 90km/h.
4Hawks antenna significantly increases the range of Dji Inspire 2, so the drone can reach even further than ever before. Additionally, the strength of the signal is improved, especially in noisy areas.
Last but not least, with 4Hawks range extender, the video quality is always glitch free, thanks to a strong, uninterrupted signal, that is supported by two frequencies operating at the same time.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain

Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi))
Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)

Beamwidth

Port 1: 90°/65° & 55°/55°
Port 2: 90°/65° & 55°/55°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint

Weight

~ 200g (110g Antenna + 90g Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Tilt adjustment

3 tilt positions, OnClick system

Mounting type

On SMA connectors (Permanent)

alt

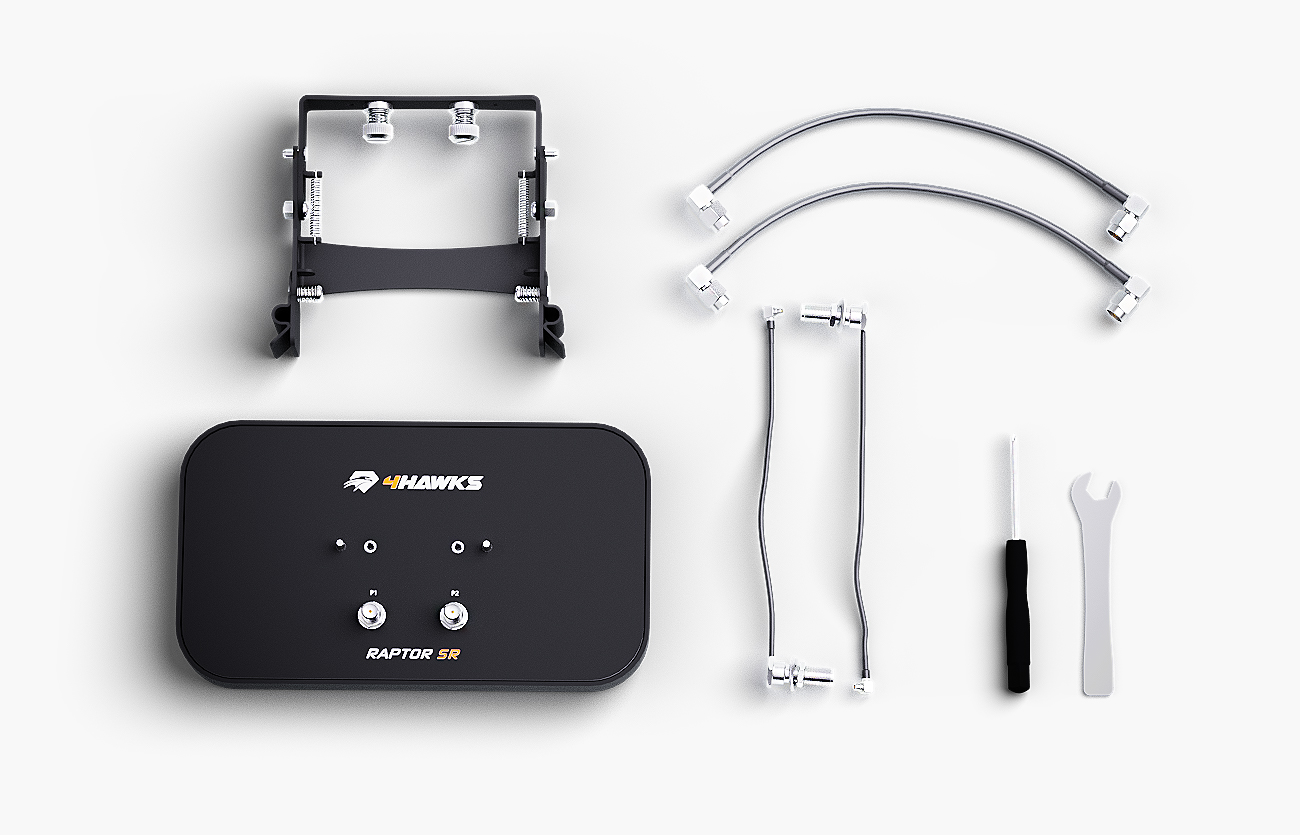

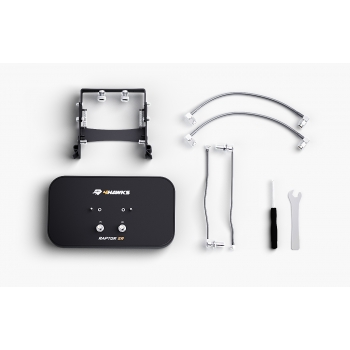

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 black pigtails


2x Dedicated for Inspire MMCX pigtails	2x screwdriver (Torx T6 & Philips) + 8mm wrench

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt

Tutorials

Video tutorial with modification of the controller.
