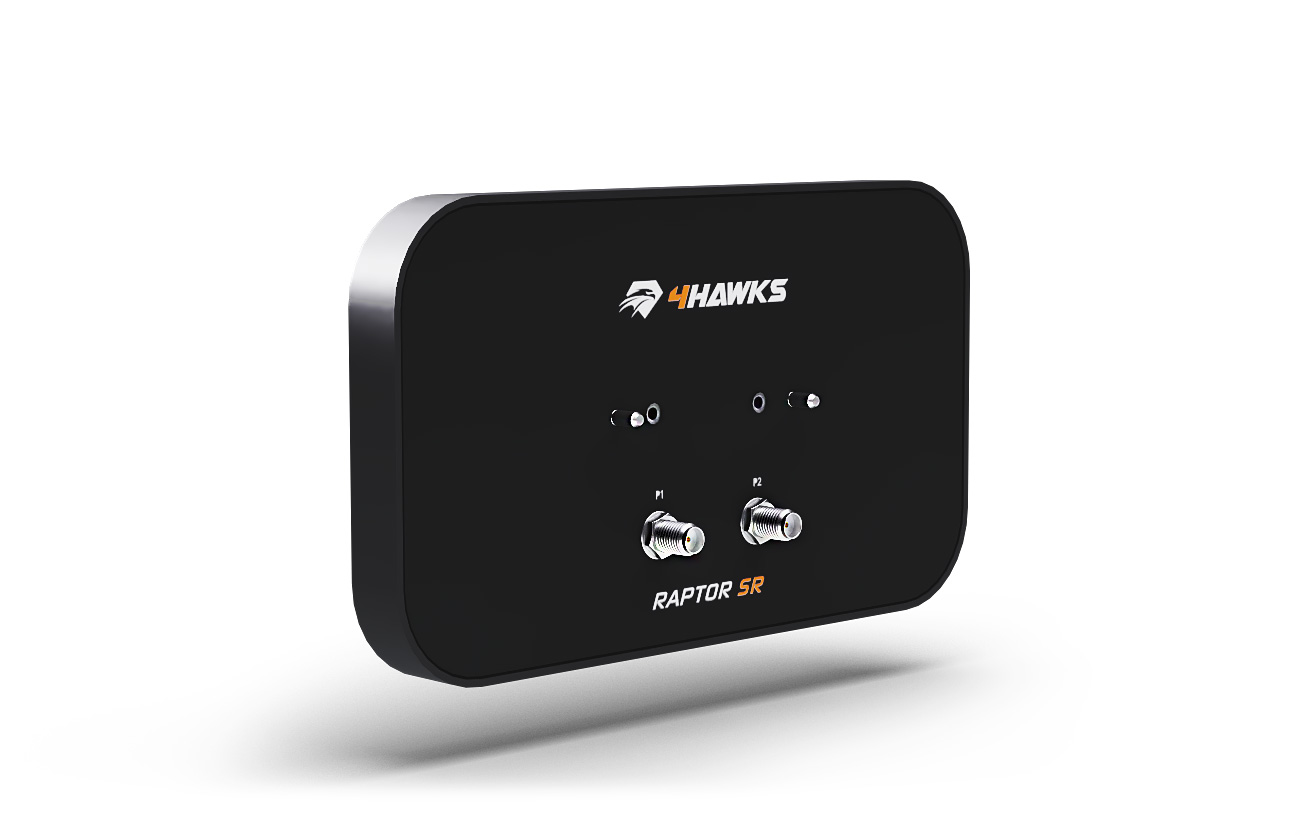

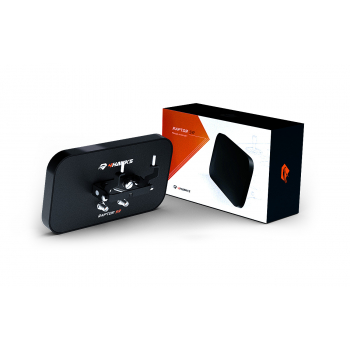

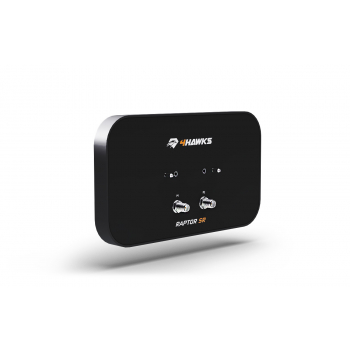

Raptor SR for 3DR Solo [A111S]

Availability: Always on stock

The cost of shipping: from 1.99 $

Product code: A111S

EAN: 853854008186

Condition: New

Weight: 0,40 KG

nett price: 99.90 $

Before purchasing the product, select the required options.

Quantity: pcs.

Add to cart

add to wish list

Ask for product Tell a friend PDF Specification

Product description

Features:

Plug&Play
Adjustable tilt of the range extender
No drilling required
No modification to the drone itself
Long range extension without external boosters
Complete solution
Controller NOT included

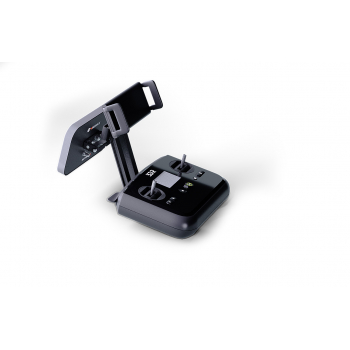

Designed for 3DR Solo

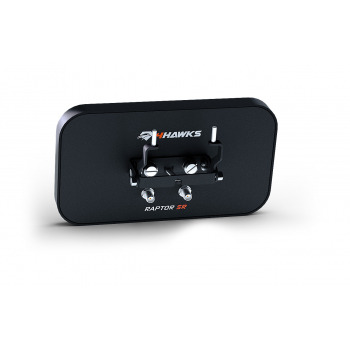

Raptor range extender increases your drone’s flight range. From now on you can reach up to three times further than with standard antennas. All materials were precisely selected and all elements were designed diligently. The radio transparent radome is made by advanced injection moulding process. Mounting system is made of stainless steel and doesn’t contain any removable parts that can be easy to lose. Thanks to dedicated mechanism, the operator can easily and smoothly adjust tilt of the antenna.


Extender Flight Range	Noise removal from other devices	Improved video signal	Adjustable signal direction	High quality, lightweight design	Complete solution

alt

Specification

Electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 - 2.50 GHz
Port 2: 2.40 - 2.50 GHz

Gain

Port 1: 9 dBi (+/- 1 dBi)
Port 2: 9 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.30)
Port 2: < 1.50 (max. < 2.30)

Beamwidth

Port 1: 70°/65°
Port 2: 70°/65°

Polarization

Port 1: Vertical
Port 2: Vertical

Impedance

Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, FR4 PCB
Mounting: Stainless steel + paint

Weight

~ 200g (110g Antenna + 90g Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection

Port 1: RP-SMA female
Port 2: RP-SMA female

Tilt adjustment

3 tilt positions, OnClick system

Mounting type

2-Screws mount

alt

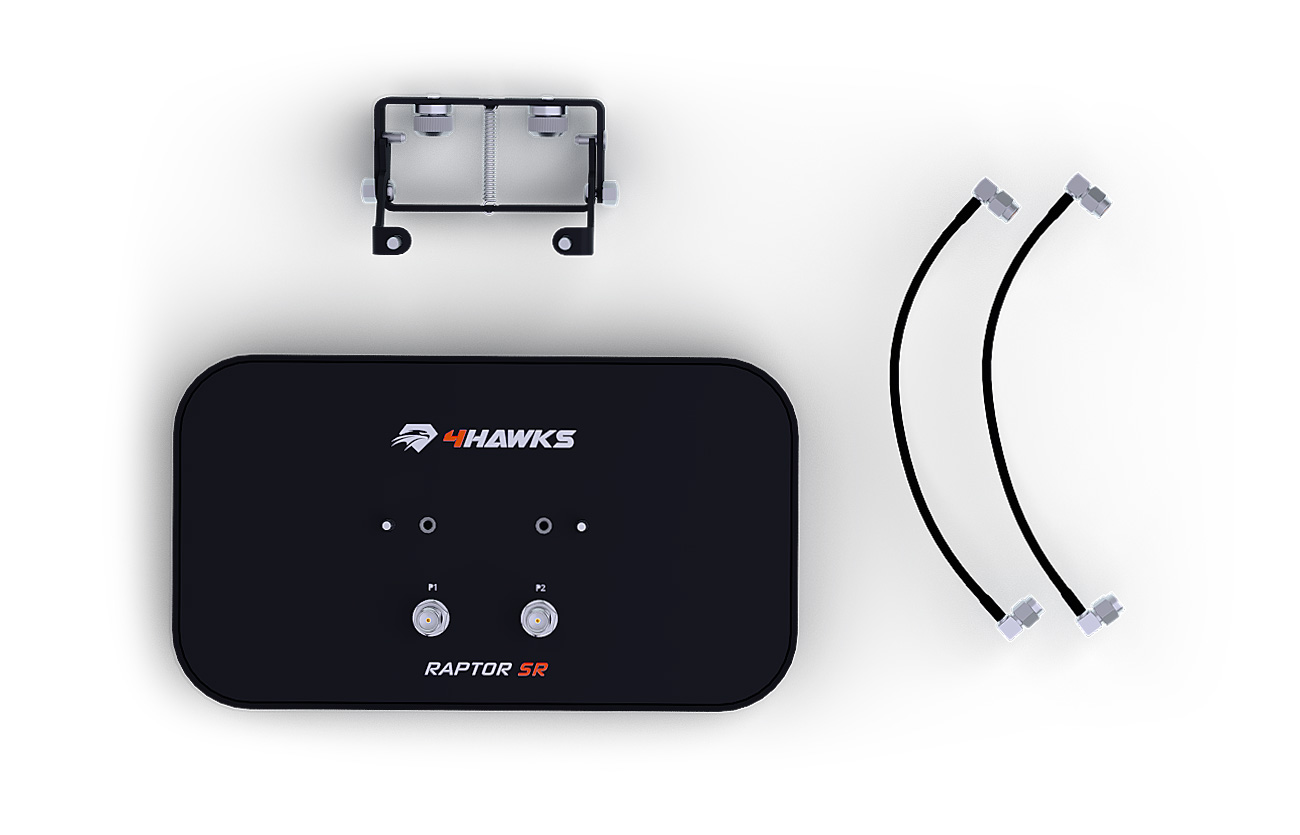

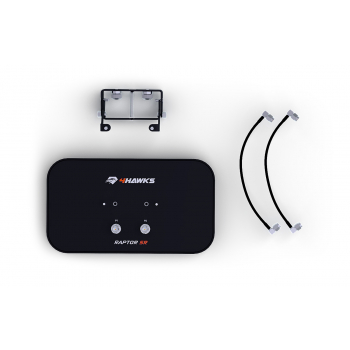

In the box

Accesories included to the Raptor range extender antenna.


Range extender antenna	Stainless steel mounting kit	2x RP-SMA male RG316 black pigtails

alt

Plots

VSWR, Separation between connectors & characteristic patter of Raptor antennas.

alt
